High-Resolution Bluetooth 5.0 Decoding Chip AK4497EQ Audio Decoder

    High- End Chipset Allocation
    Full-Balanced Input/Output Ports
    Digital Filter & Color Options
    Excellent Bluetooth 5.0
    Full-Featured Remote Control
Regular price $299.99 USD
Sale price $299.99 USD Regular price

High- End Chipset Allocation

The SMSL M200 features a marvelous decoding chip AK4497EQ from AKM paired with the second generation XMOS program and dual independent crystal oscillators. This chipset provides distortion-free and high-quality sound rich with details. The M200 can also decode PCM up to 32bit/768kHz, and there is an exclusive custom supporting native DSD drivers without conversion.

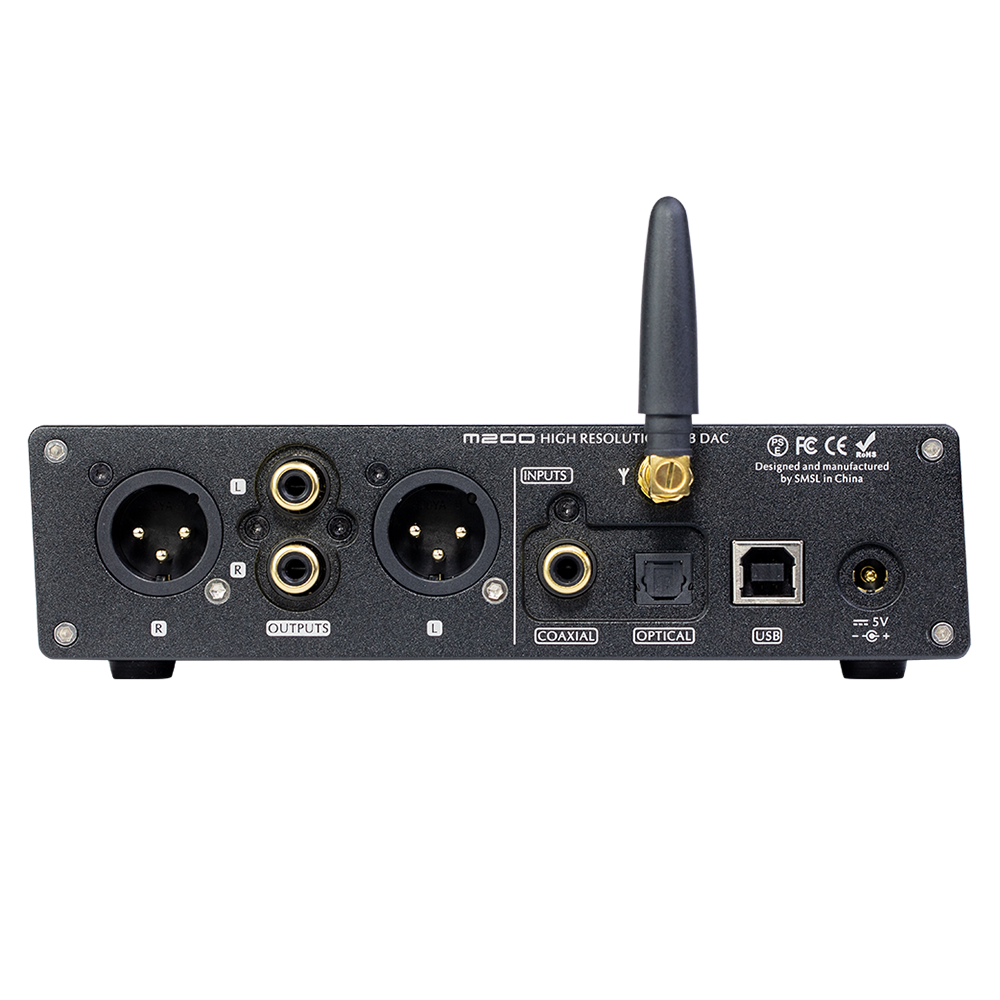

Full-Balanced Input/Output Ports

SMSL M200 has multiple input ports, including Coaxial, Optical, USB, IIS and Bluetooth input modes. The device also features pure balance output with full-balanced design.

Digital Filter & Color Options

The M200 characterizes six digital filter modes and three sound color options to meet different needs and different types of music. These modes can improve our audio experience and enjoy the music we desire for.

Excellent Bluetooth 5.0

The SMSL M200 equips with a brand-new Qualcomm Bluetooth solution with low power design and powerful quad-core processor architecture. It supports UAT/LDAC/aptX-HD/AAC/SBC and other encoding formats and up to 24bit/ 192kHz audio. UAT is the latest high-quality codec developed by HiBy, featuring files with 24-Bit/192kHz bitrate and offers the best sound quality streaming over wireless connectivity.

Full-Featured Remote Control

SMSL M200 characterizes an OLED display on the front with blue display that shows basic information like active input type, and more information. This remote controller with 2x R03/ AAA batteries is fully operational using the remote control.

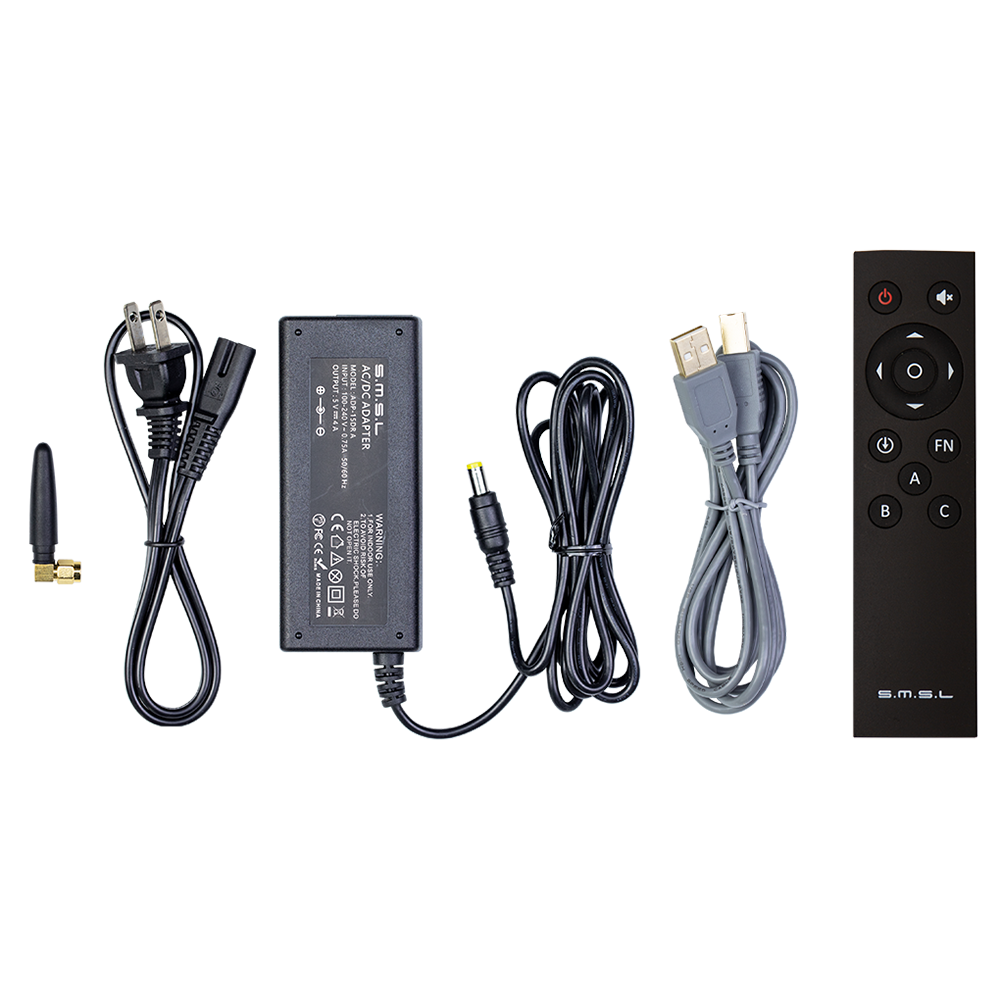

Inside the Box

  • 1 x SMSL M200
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

Technical Details

USB, Optical, Coax, and Bluetooth
Output Level:
RCA 2Vrms
XLR 4.1Vrms
Dynamic range (A-WTD):
RCA 123dB
XLR 125dB
UAT 24bit/192kHz_1200kbps (-1200kbps/900kbps/600kbps)
LDAC 24bit/96kHz_990kbps (-990kbps/660kbps/330kbps)
aptX-HD 24bit/48kHz_576kbps
aptX 16bit/44.1kHz 352kbps
SBC 16bit/44.1kHz_328kbps
AAC 16bit/44.1kHz_320kbps
USB transmission:
USB compatibility:
Windows 7 / 8 / 8.1 / 10Mac OS x10.6 or later / Linux
Bit depth:
USB 1bit ~ 32bit
Optical/coaxial 16bit ~ 24bit
Sampling rate:
•USB 44.1~768kHz
DSD64, DSD128,DSD256, DSD512
•Optical/coaxial 32~192kHz
Power Consumption:
Standby Power:
160mm X 43mm X 168mm
Package Weight:
