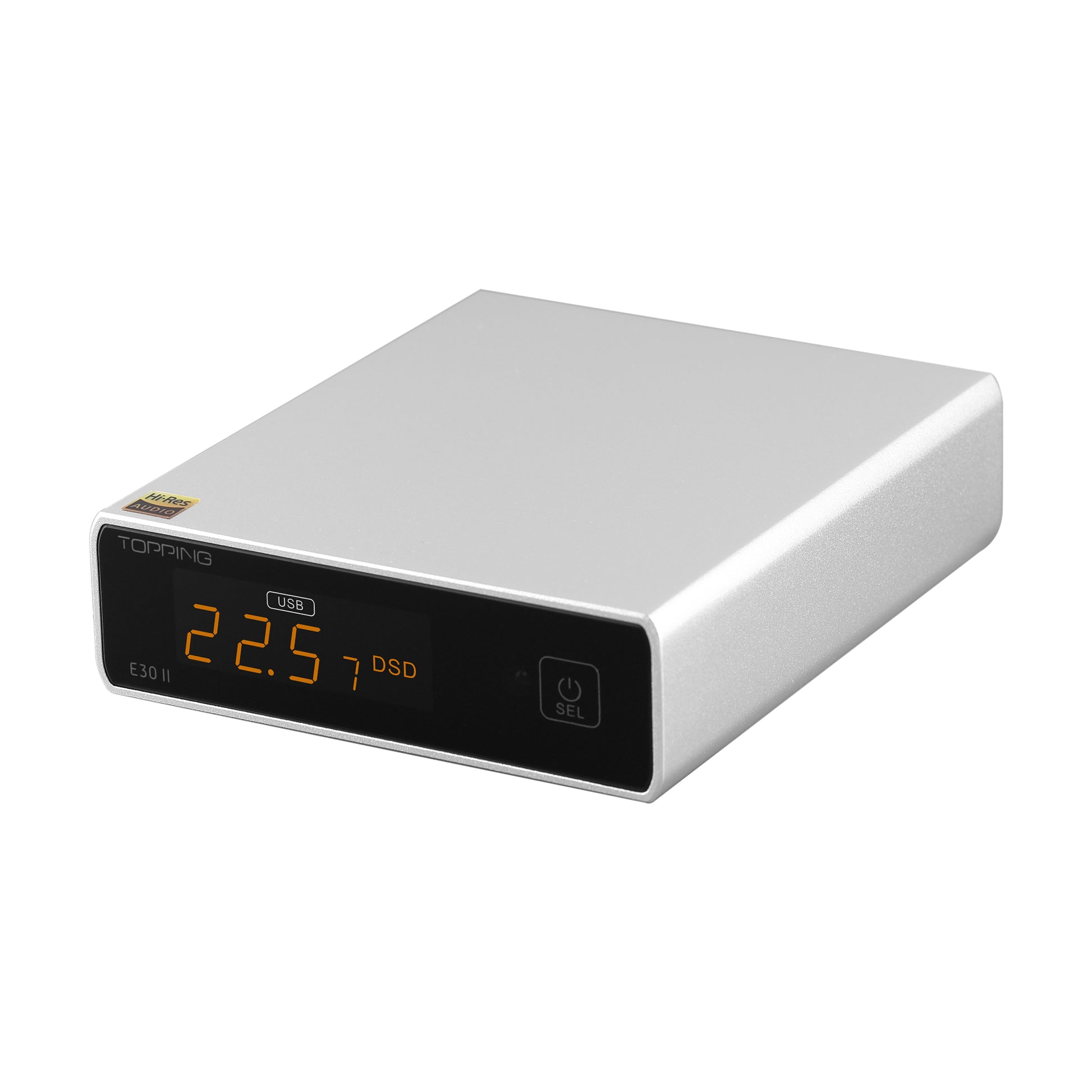

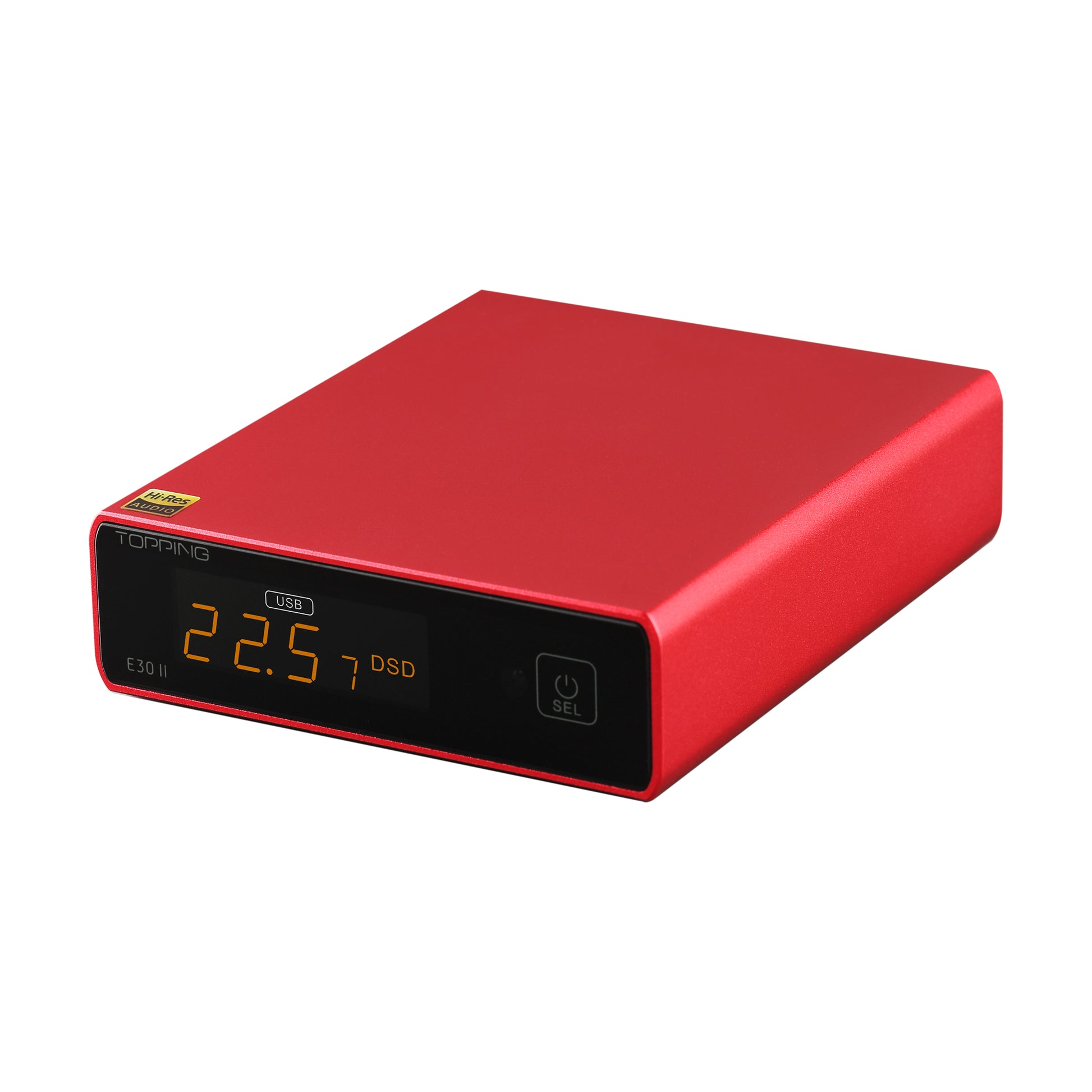

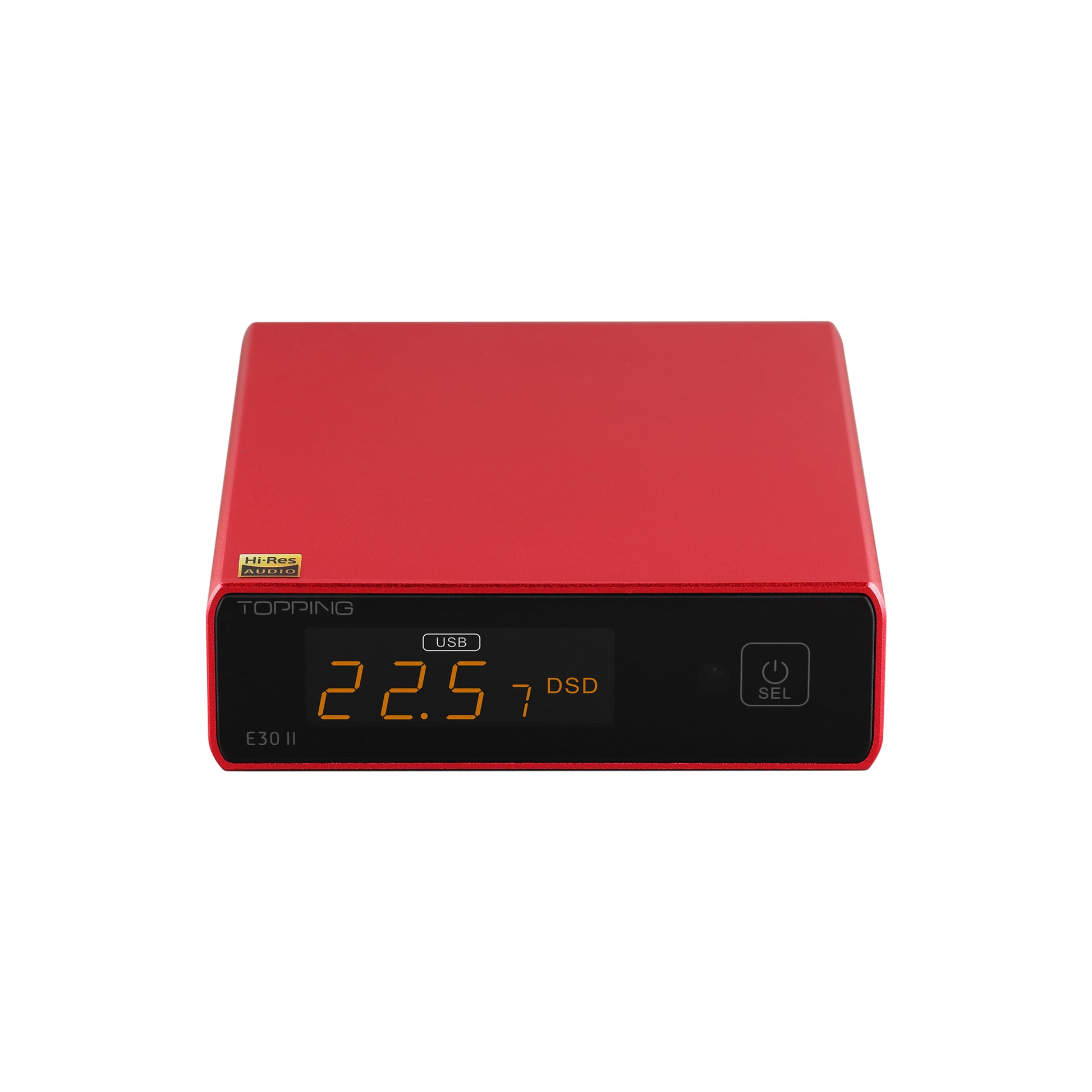

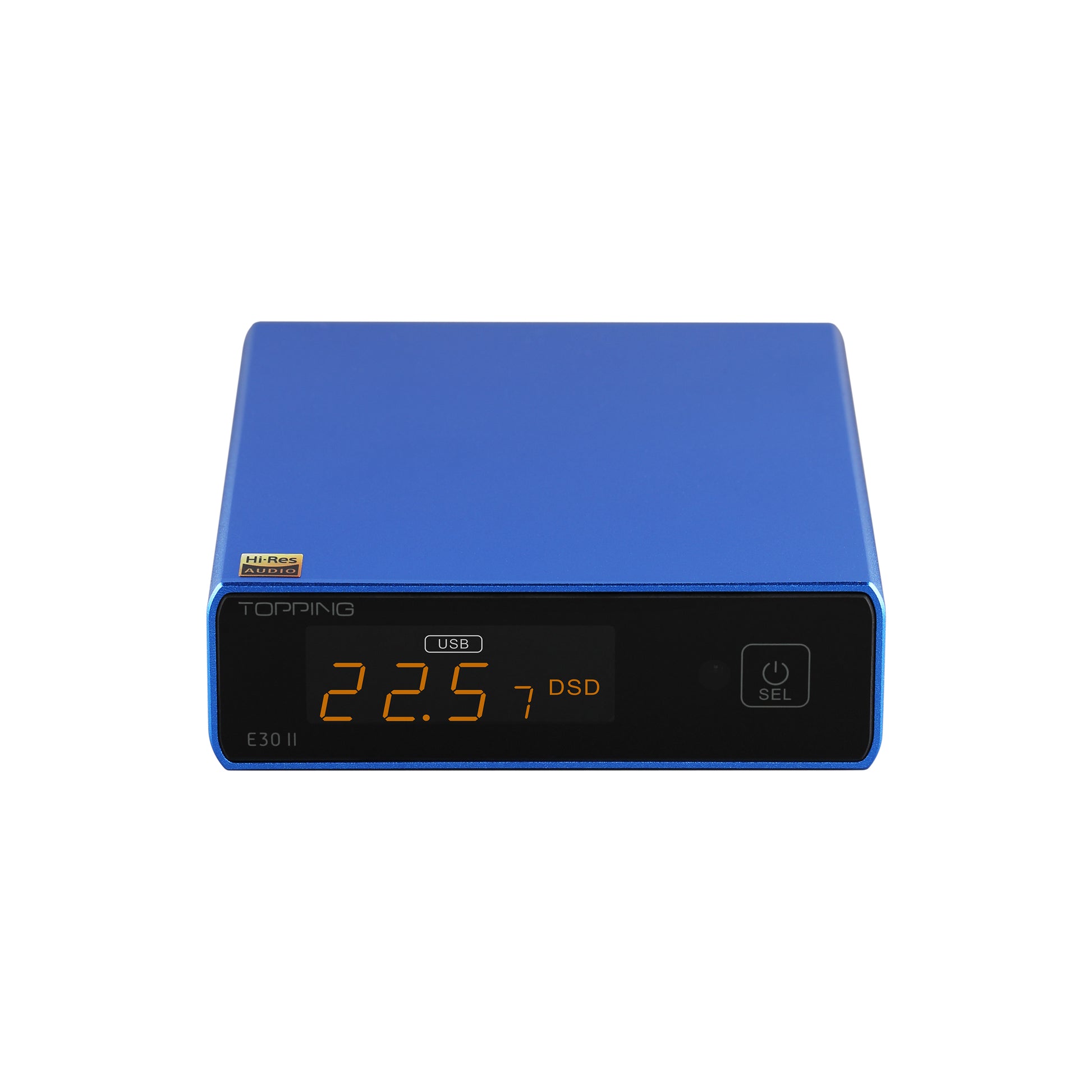

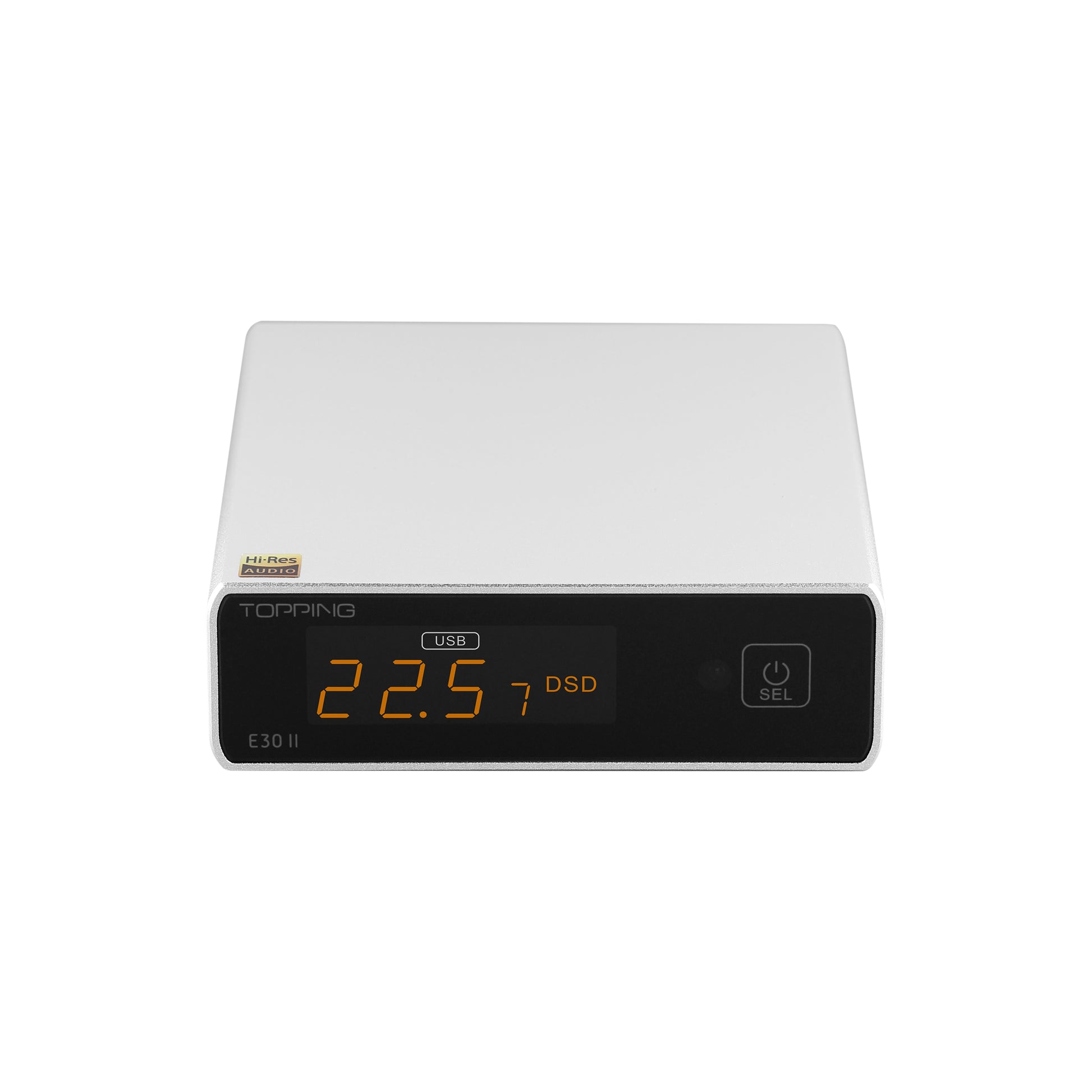

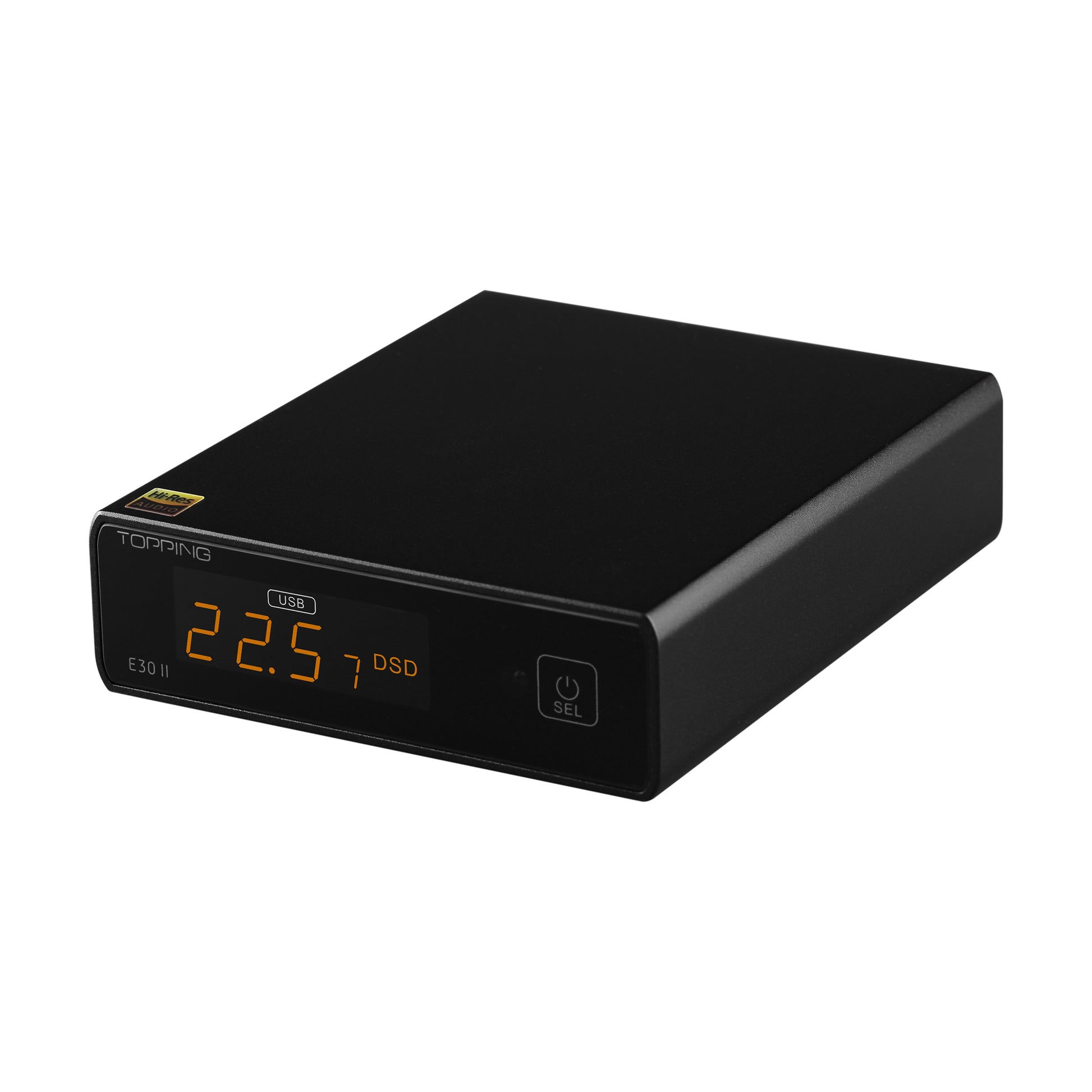

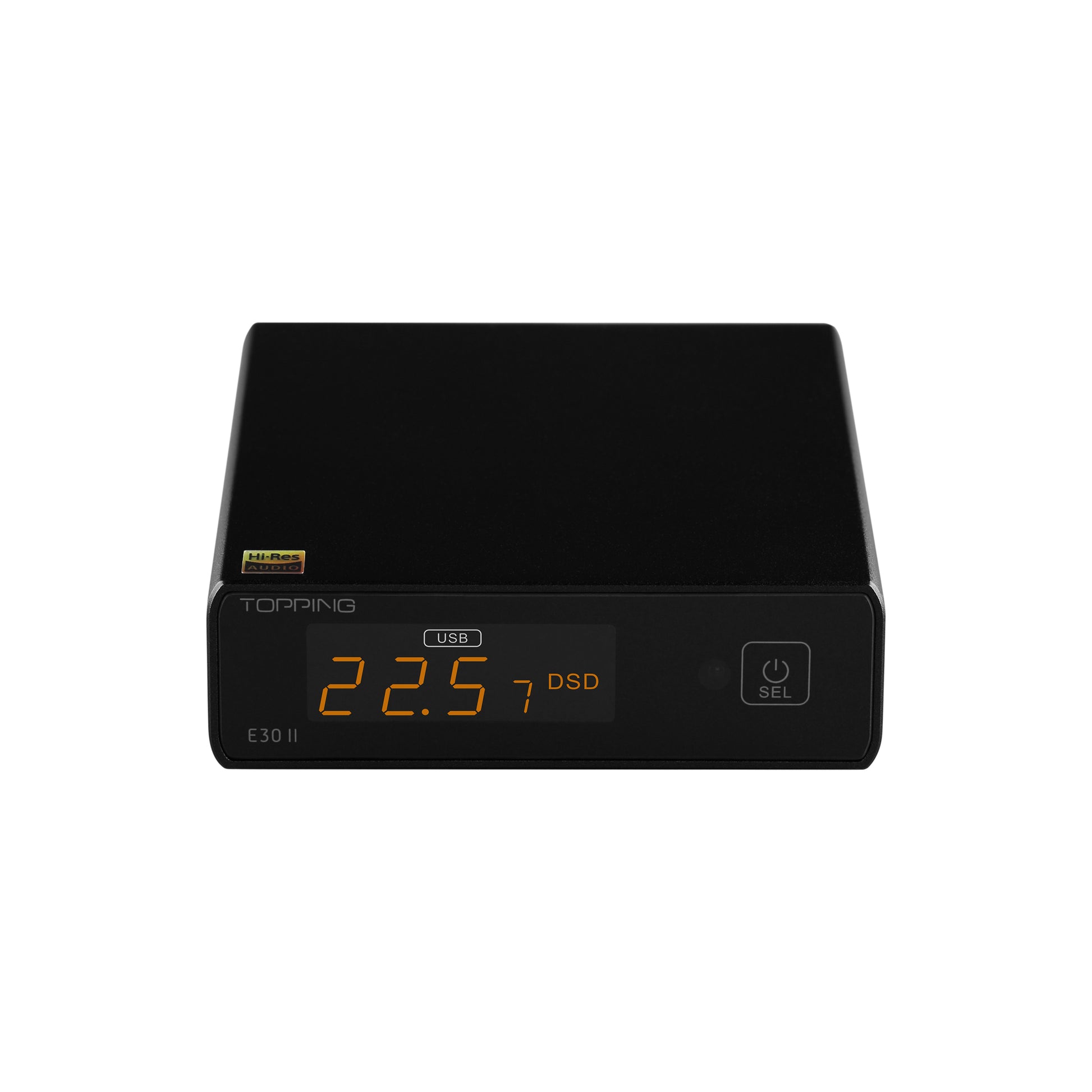

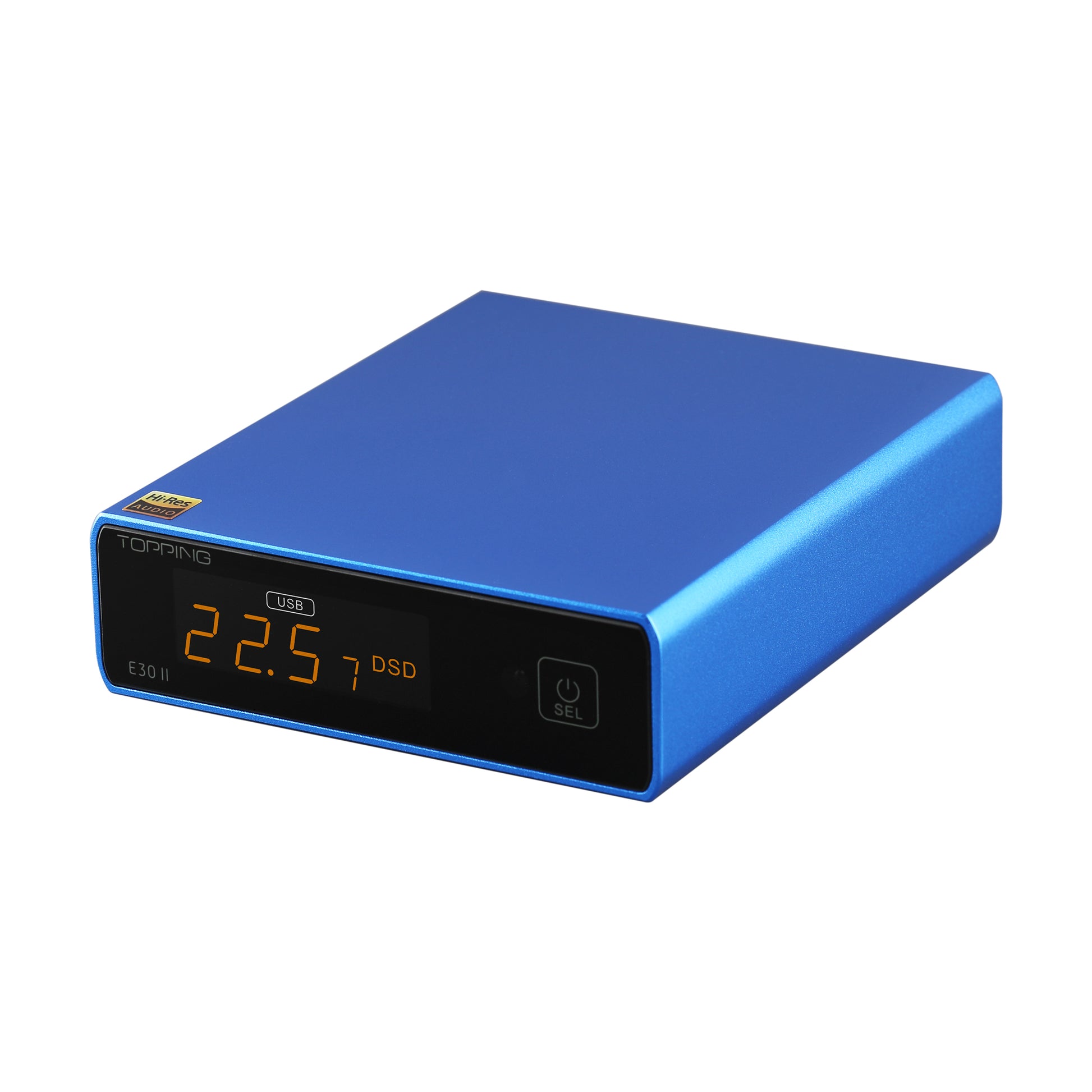

Newest Desktop DAC -Topping E30 II
As a successor to the highly-acclaimed E30 DAC, the latest E30 II adopts the latest launched AKM DAC chips. It features a digital signal processing circuit that enables the E30 II to deliver class-leading performance in decoding high-resolution audio signals. Topping E30 II brings a tremendous increase in the performance quality achieving lower distortion ratings, higher dynamic range, and signal-to-noise ratio compared to the predecessor model. Topping E30 II can be the next DAC that will serve you with an authentic Hi-Res audio performance without breaking the bank!!
Upgrade AKM AK4493S Sound Chips
Topping E30 II is designed with a premium Dual DAC Chipset for high-resolution audio signal decoding. Topping has equipped the E30 II with two latest launched AK4493S DAC chips which are from the AKM’s Velvet Sound Technology chipset, an upgraded version of the classic AK4493. Two of the AK4493S chips are arranged in parallel, one for each channel. They enable the device to achieve best-in-class performance with ultra-low distortion and high SNR/DNR ratings.
Pure DAC, Also Pre-AMP
Topping E30 II can be used in pure DAC mode where the output level is maxed out. In this mode, DSD signals bypass the DATT Soft Mute and Delta Sigma Modulator to provide a pure DSD performance. It also has an in-built volume control function that allows the users to use the E30 II as a Pre-AMP in their chain.
Just Plug And Play, Turn Your PC into a HiFi Source
The USB input of Topping E30 II is handled by the trusted XU208 8-core USB processor from XMOS. It supports high-resolution PCM(up to 32-Bit/768kHz) and native DSD512 audio signals. E30 II also offers plug-and-play connectivity with a wide range of devices including Windows 10, Windows 11, Mac, Linux, and more. Feel free to turn Your PC into a HiFi Source.
Pre-Built DAC Filters
Topping E30 II includes various different digital filters for decoding. It has 6 pre-built filter modes for PCM decoding, and 2 pre-built filter modes for DSD signal decoding. Each filter adjusts the output in a different way, make sure you try them all out.
Discrete LNRD Circuit
E30 II use DC5V for power supply, which can access almost everywhere. In order to reduce the noise problem with a 5V power supply, Topping has equipped the E30 II with a Discrete LNRD circuit(Low-Noise Reference Driver), which can filter out the noise caused by the adapter and provides a stable power supply of ultra-low noise reference level. With this technology, the noise can be lower than 1.5uV.
Technical Details
Dual AK4493S DAC chips
XMOS 8-core XU208 USB Processor
Preamp function
Supports native DSD512 and PCM 32-Bit/768kHz
Support DSD Direct Mode
MQA Decode for USB, Coaxial, and Optical Inputs
Touch operation
Remote Control
USB :44.1kHz-768kHz 16bit-32bit
OPT/COAX : 44.1kHz-192kHz 16bit- 24bit
DSD (Native)
USB: DSD64-DSD512
OPT/COAX: Not supported
DSD (DOP)
USB: DSD64-DSD256
OPT/COAX: Not supported
Output Voltage:2.1Vrms@0dBFS
Noise:<1.5uVrms @A-weighting
Crosstalk:-132dB @1 kHz
SNR:>121dB @ 1kHz
Dynamic Range:123dB @1kHz
Channel Balance:<0.3 dB
Remote
USB Cable
DC Cable
User Manual
Warranty Card
- 1 x TOPPING E30 II
- User Manual
