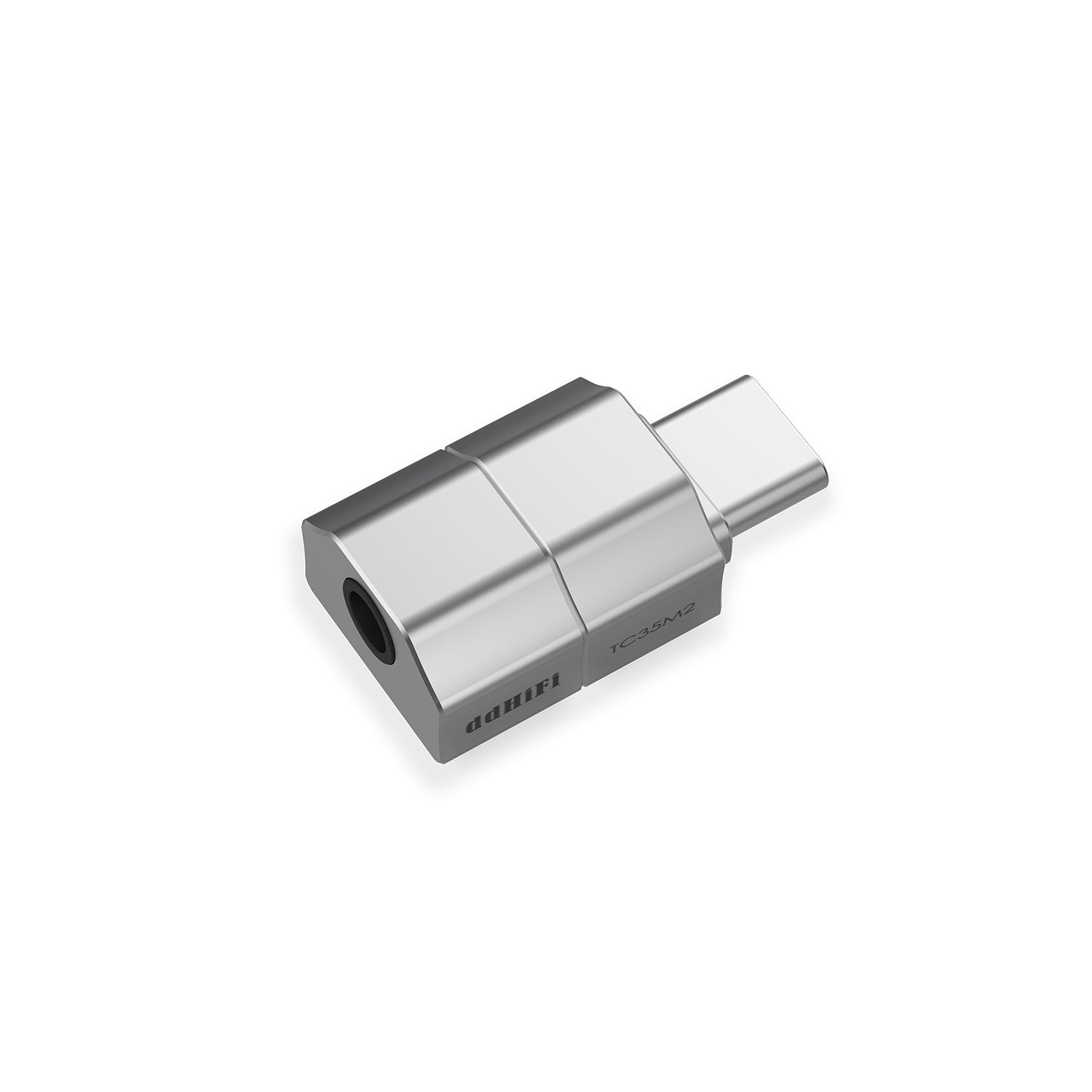

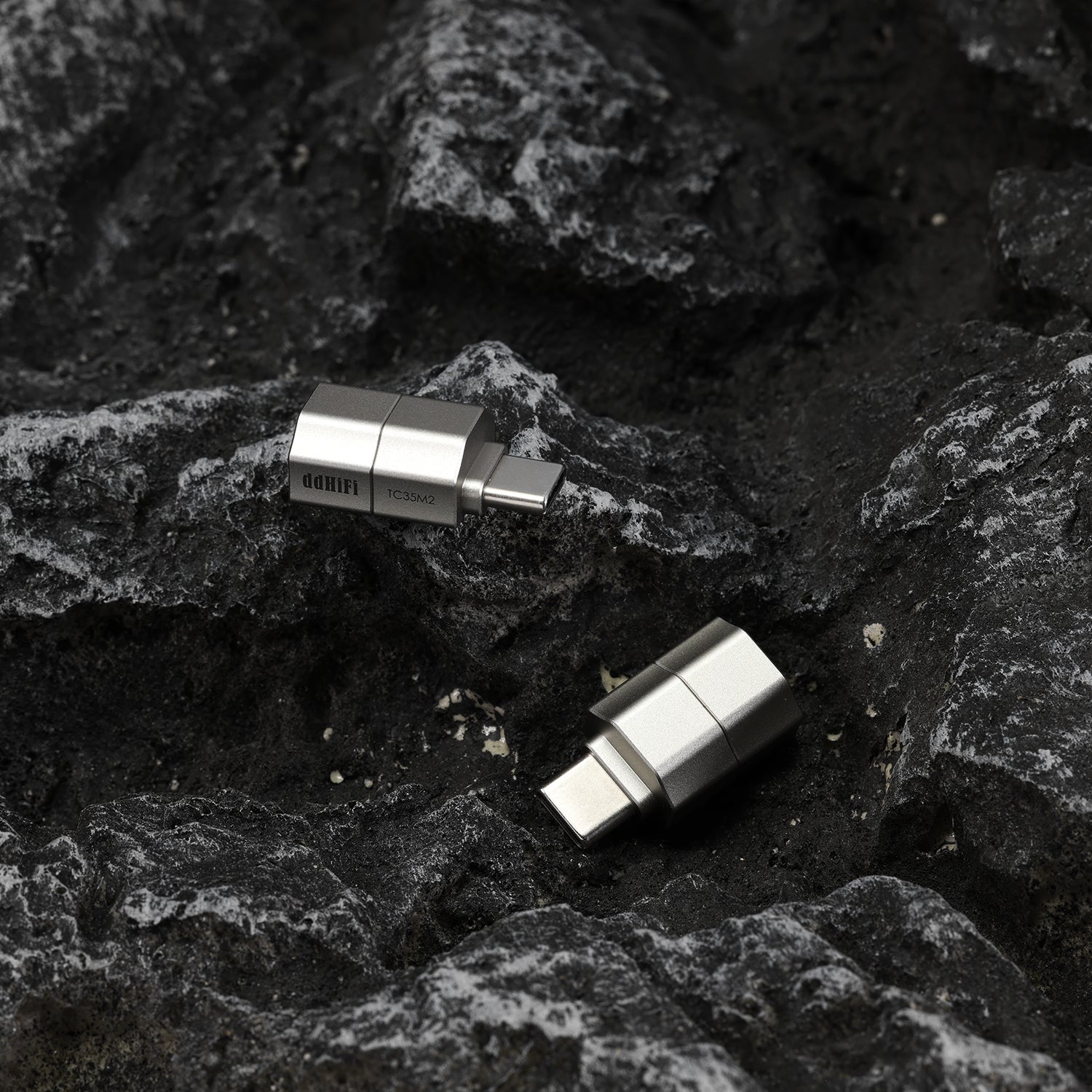

Full-Featured USB-C to 3.5mm DAC & AMP Adapter (2nd Gen)

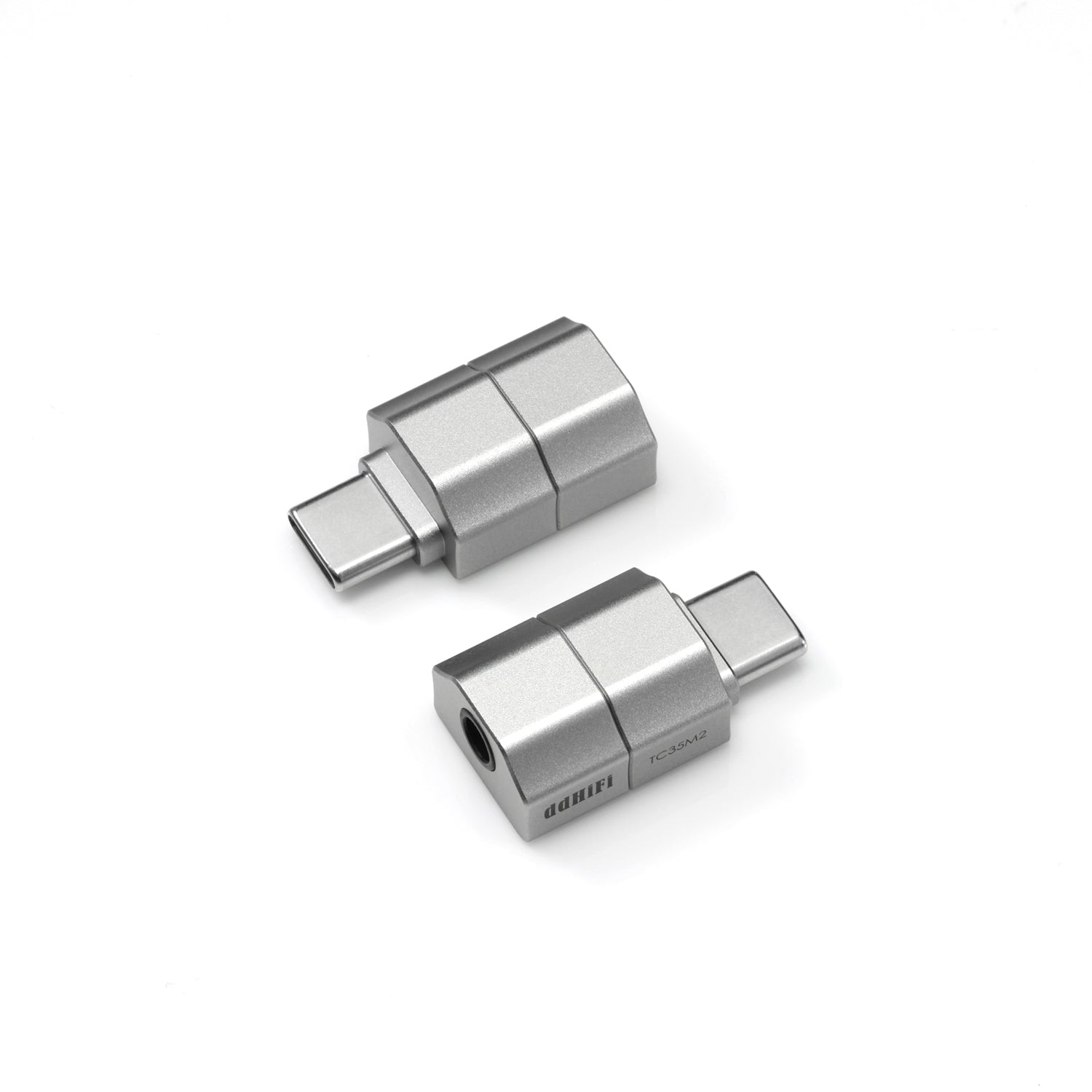

The TC35M2 is designed to provide convenience for wired earphone users. Compared to its predecessor, this 2nd generation adapter features upgraded shell craftsmanship and improved plug strength, making it more durable and reliable.

Supports Insertion Detection and In-Line Controls

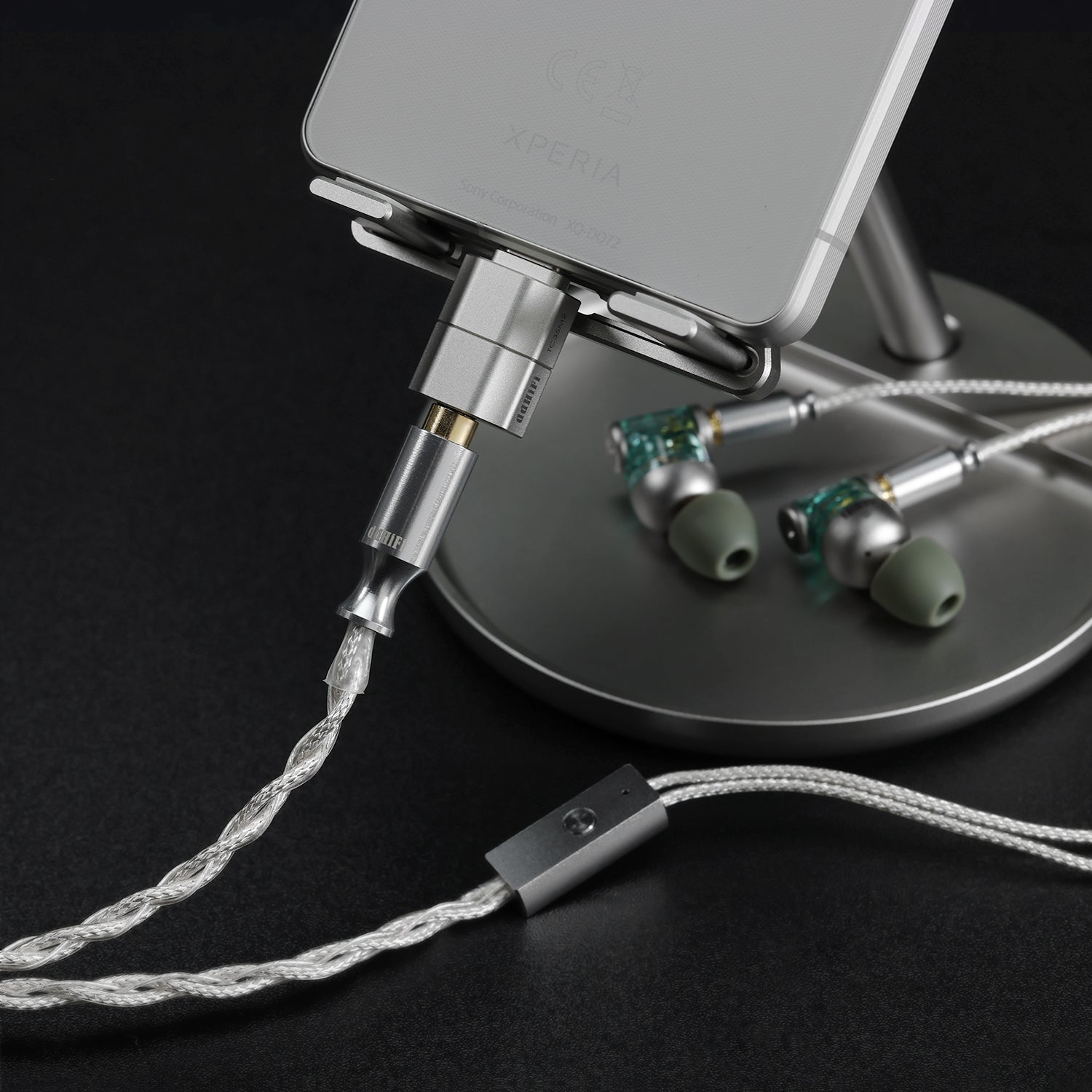

The earphone socket includes a detection function to identify whether an earphone is connected. The TC35M2 also supports four-section 3.5mm earphone cables, allowing for phone call answering and music playback controls.

Stand-Alone Chips for Decoding and Operational Amplification

The TC35M2 is compatible with popular lossless music apps such as Apple Music, QQ Music, Netease Cloud Music, and Sony Lossless Music. While most lossless music formats offered by these apps are 44.1kHz, 96kHz, or 192kHz, the TC35M2 supports PCM decoding up to 384kHz. Equipped with an independent decoding chip and OP-AMP chip, the TC35M2 delivers stable performance and output power, making it suitable for most 3.5mm earphones on the market.

Excellent Compatibility

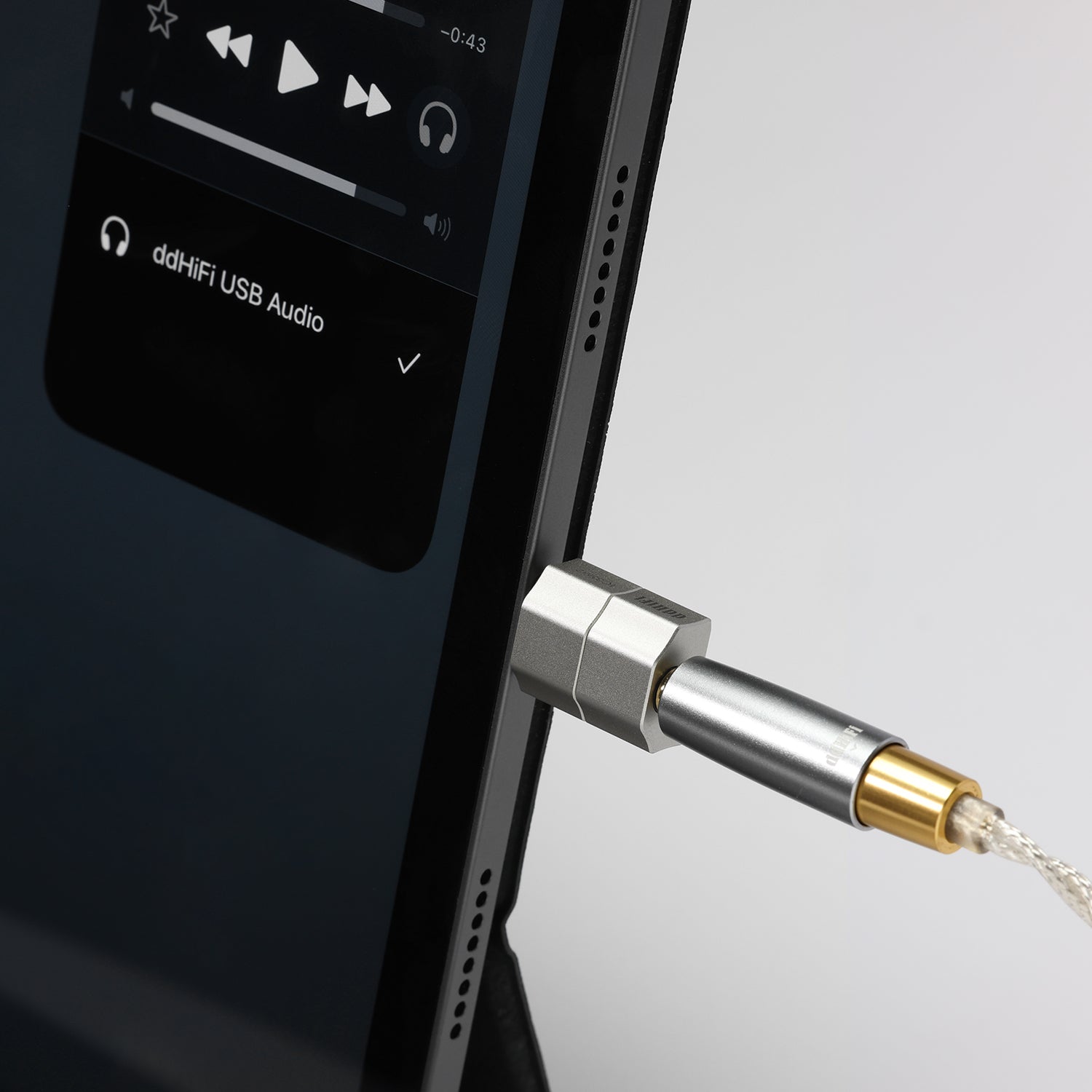

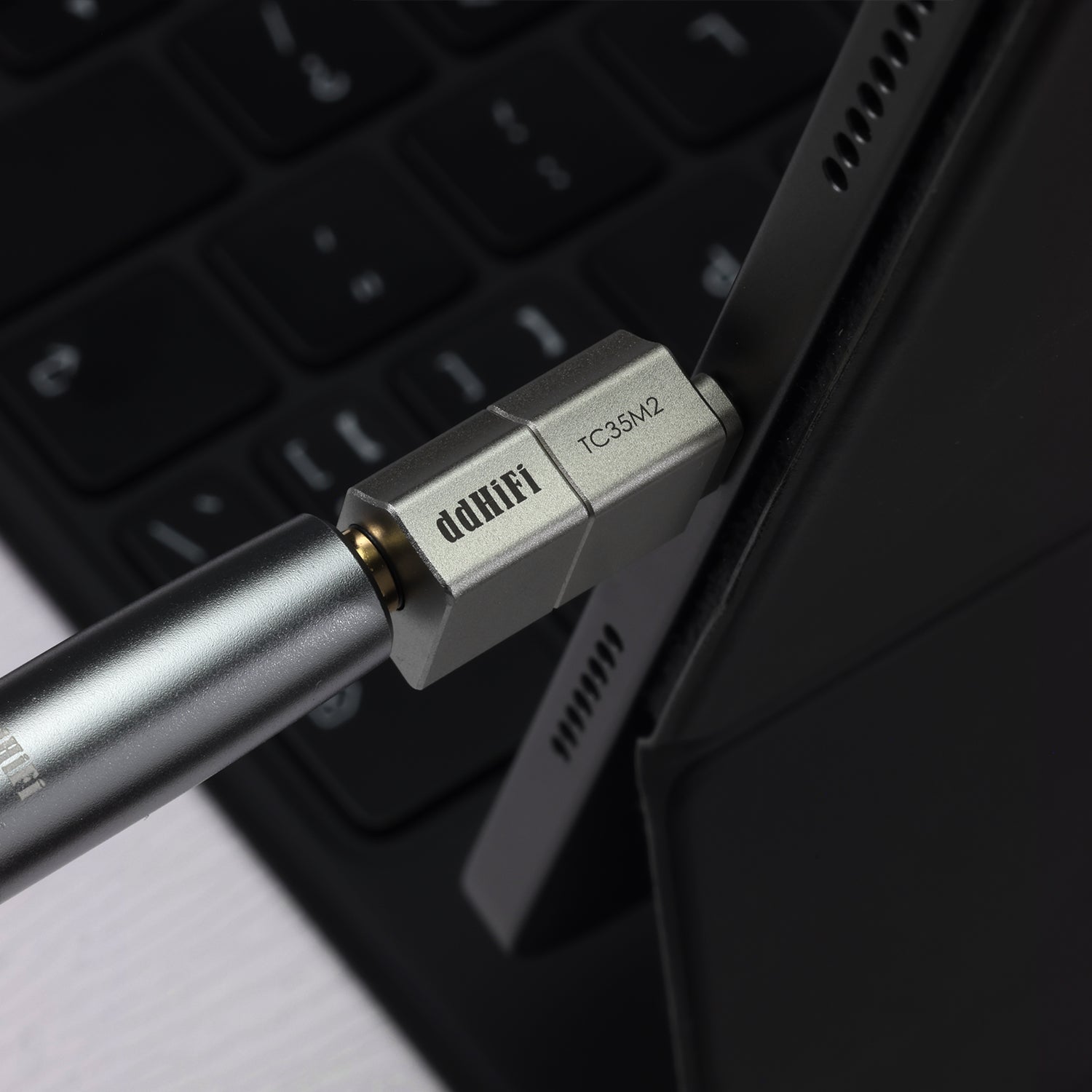

Compatible with most USB-C terminated audio output devices, including Android phones, the iPhone 15 series, tablet PCs, laptops, and more.

Technical Details

Plug
USB-C
Socket
3.5mm four-section
Frequency Response
20Hz-20kHz
Ear Amplifier Chip
ES9603Q (independent)
Output Power
L + R ≥ 45mW + 45mW (32Ω / THD + N <1%)
Signal-to-Noise Ratio
≥ 112dB (32Ω load / A weighting)
Dynamic Range
>120dB
Total Harmonic Distortion
<0.008% (32Ω load)
Bottom Noise
<3μV (A-weighted)
PCM Decoding Support
Up to 32bit/384kHz
Support for In-Line Headphone Type
CTIA in-line standard
Dimensions
17.8 × 14 × 8.9 mm
Weight
About 3.6g
Inside the Box
  • 1 x DDHiFi TC35M2
  • User Manual
