Dual CS43198 Chip Portable DAC/AMP

  • Dual CS43198 Flagship Chip and Professional Audio Architecture
  • Modular Design with Broad Compatibility
  • Sleek, All-Metal Body: Exquisite and Portable
  • Compact Design with Powerful Output
  • Precision Volume Control with Memory Function
Regular price $69.99 USD
Sale price $69.99 USD Regular price

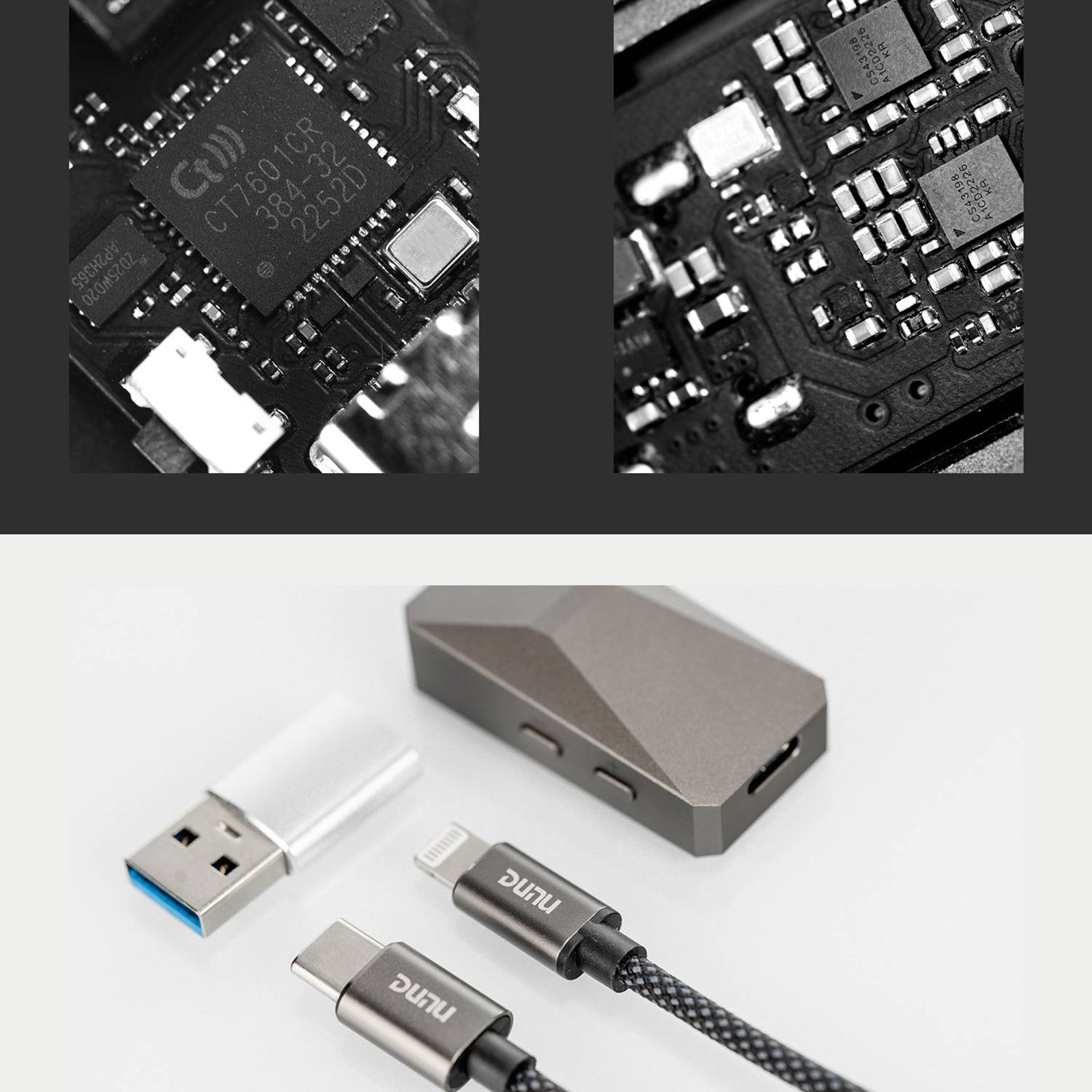

Dual CS43198 Flagship Chip and Professional Audio Architecture

The DTC 480 features dual flagship-level CS43198 DAC chips, delivering superior decoding performance. This device's professional audio architecture includes an independent LDO power supply and active crystal oscillators, achieving a dynamic range of 130dB and a high signal-to-noise ratio of 130dB. With an extremely low noise floor (<1μVrms), it ensures pure, stable sound quality.

Modular Design with Broad Compatibility

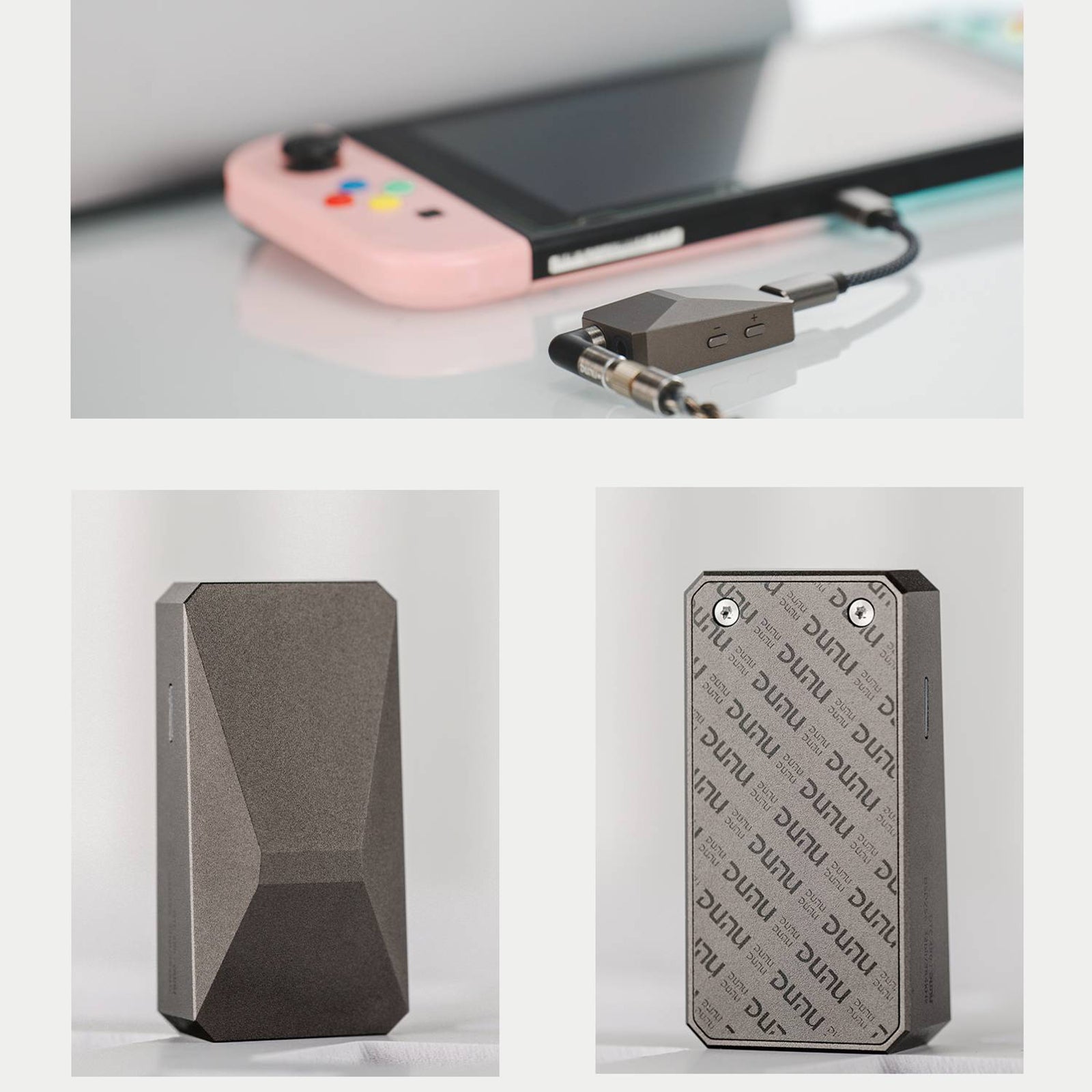

Designed for versatility, the DTC 480's modular design supports compatibility across various platforms. It decodes PCM audio up to 32Bit/384kHz and DSD audio up to DSD256 on both computers and smartphones. Additionally, it seamlessly switches between UAC1.0 and UAC2.0, making it possible for gaming consoles to experience immersive Hi-Fi sound quality.

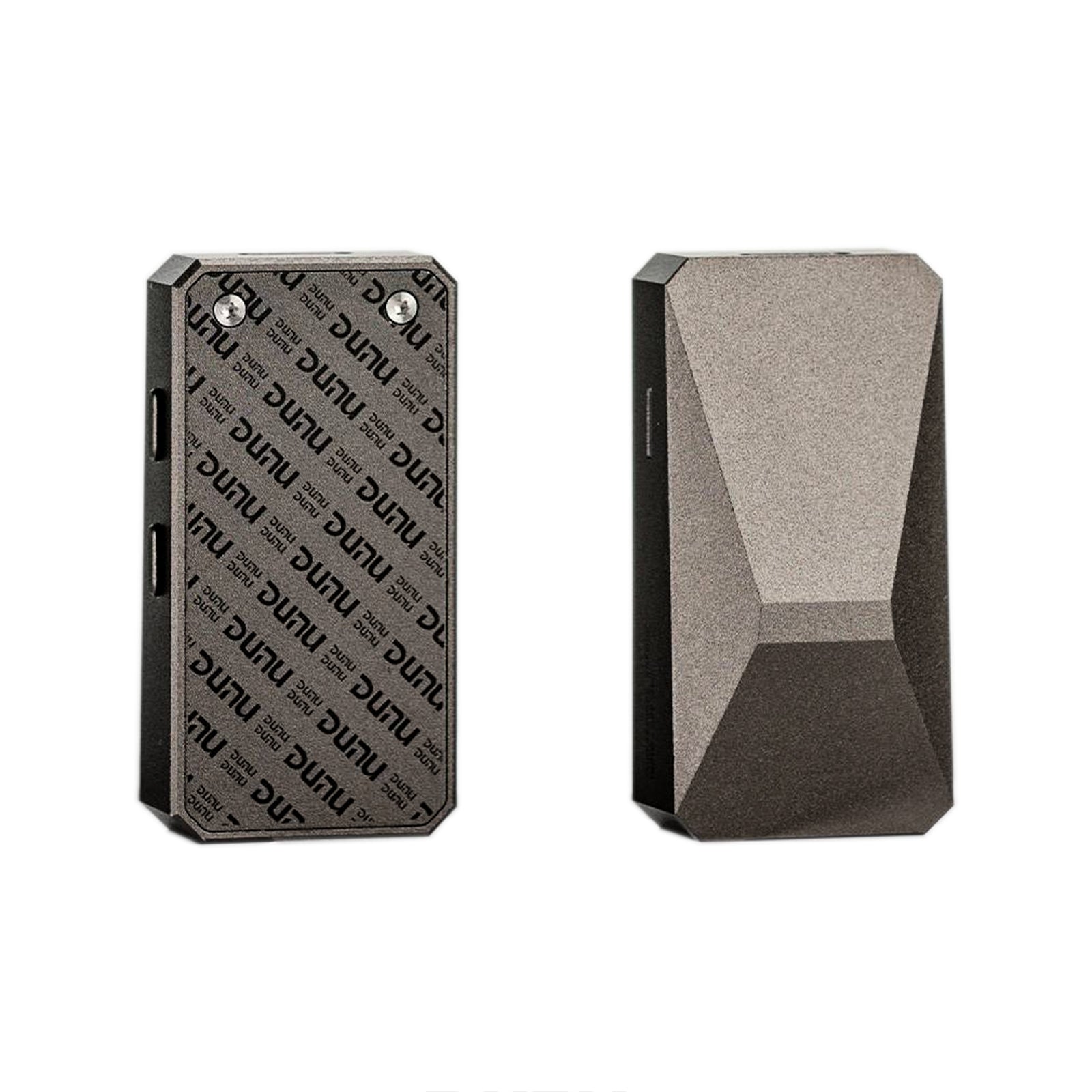

Sleek, All-Metal Body: Exquisite and Portable

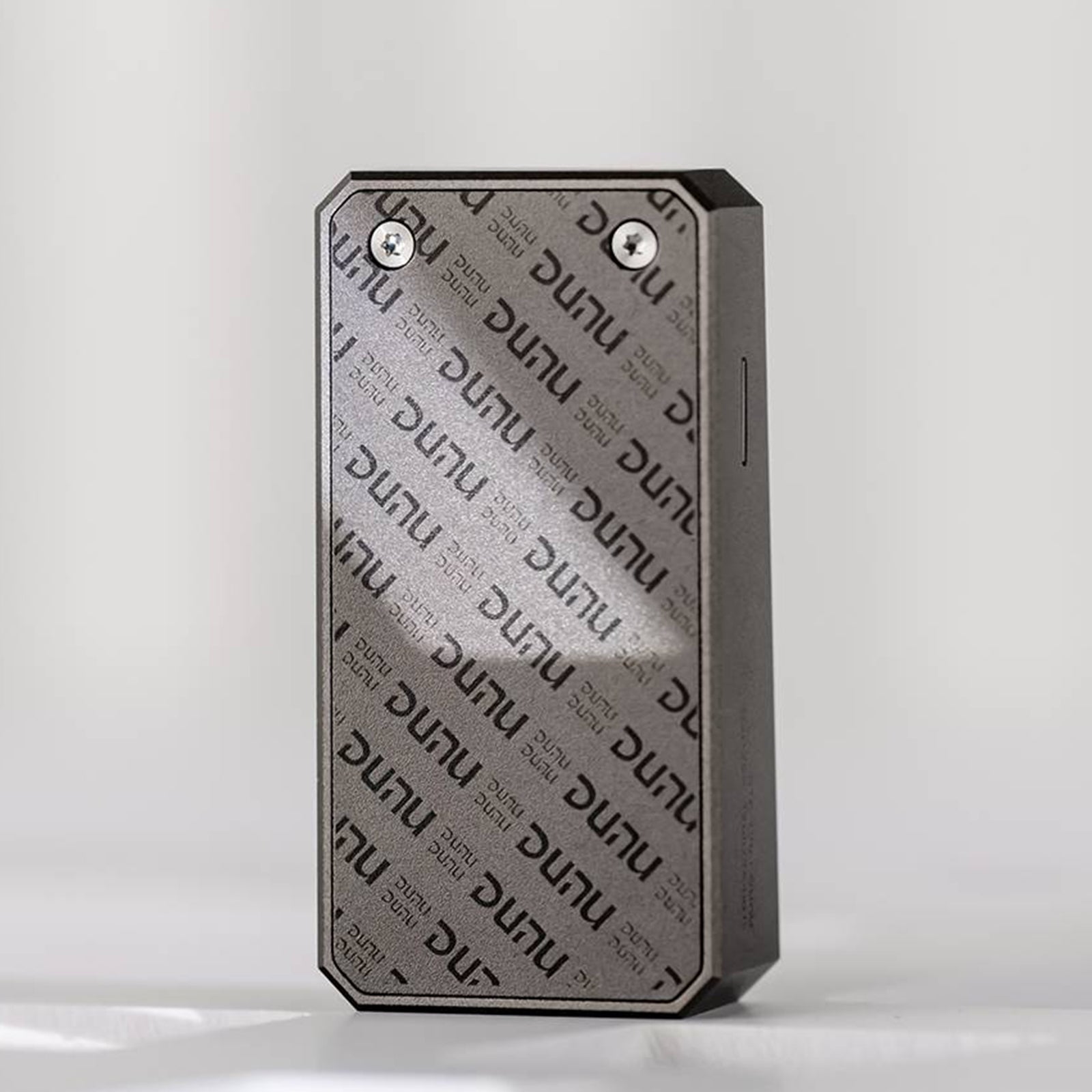

The DTC 480 boasts an all-metal body crafted from a single block of aluminum alloy using CNC precision carving. Its refined surface finish, sandblasted texture, and unique logo pattern on the bottom plate enhance its aesthetics and ensure efficient heat dissipation. Weighing just 20 grams, it is lightweight and portable, allowing for exceptional audio quality on the go.

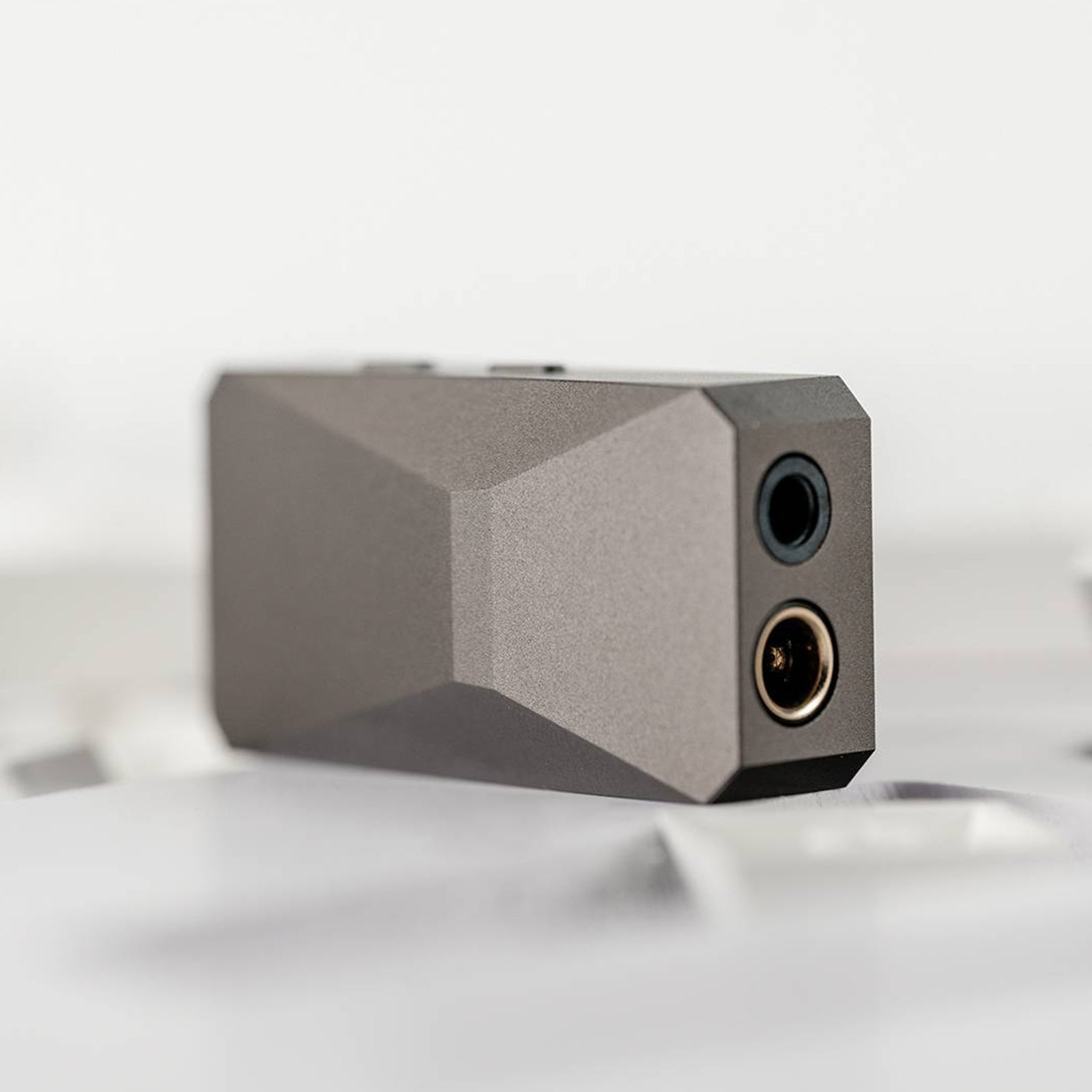

Compact Design with Powerful Output

Despite its compact size, the DTC 480 delivers robust output capabilities. It includes both 3.5mm single-ended and 4.4mm balanced interfaces, offering high and low voltage output modes. With a maximum output voltage of 4Vrms in high voltage mode, it easily drives most earphones.

Precision Volume Control with Memory Function

The DTC 480 features independent hardware-level volume control with 60-step precision adjustment, ensuring accurate volume settings. Its power-off volume memory function maintains preferred volume levels, enhancing the listening experience. Multi-color LED indicator lights on the side allow easy monitoring of the device's current status.

Inside the Box

  • 1 x DUNU DTC480
  • User Manual

1 Year Warranty

The DUNU DTC480 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

•125 dB (Single-Ended)
•130 dB (Balanced)
Dynamic Range
•125 dB (Single-Ended)
•130 dB (Balanced)
•65 mW @32 Ω (Single-Ended)
•150 mW @ 32 Ω (Balanced)
PCM: 32Bit / 384kHz
DSD: Dop 128 / Native 256
USB Type-C
•3.5 mm TRS (Single-Ended)
•4.4 mm TRRRS (Balanced)

Processing Time
