High Performance ES9038Pro Chip

At the heart of this X18 is a digital/analog conversion stage using an ESS ES9038Pro chip, known for its incredible performance and its ability to provide a particularly accurate and transparent sound reproduction. The chip has here an independent power supply allowing it to reveal its full potential.

Embedded Altera Max V CPLD

The embedded Altera Max V CPLD incorporates a number of technologies, including clock management, PLL, DoP decoder and digital filters.

I/V Conversion

The X18 has no less than eight independent I/V converters, each dedicated to a channel of the DAC, using OPA1612 AOPs. These offer excellent measurements with extremely low distortion and noise levels. Resistors with a tolerance of 0.1% are used for the key sections of this I/V converter.

Accusilicon A5318-B Clocks

Two Accusilicon A5318-B clocks ensure perfect synchronization of the audio signal for a particularly low jitter level, promoting clear and pure playback.

XMOS XU216 USB Interface

The USB input of the X18 uses an XMOS XU216 interface. It supports high resolution streams, up to 32bit 768kHz PCM and DSD512, while ensuring accurate and neutral sound.

Bluetooth 5.0

The Gustard X18 features Bluetooth 5.0 reception, allowing you to stream your music remotely, for example from a smartphone or tablet. The integrated chip supports the high-definition transmission codecs aptX HD and LDAC, ensuring sound quality equal to or better than CD quality.

Technical Details

Product type
DAC

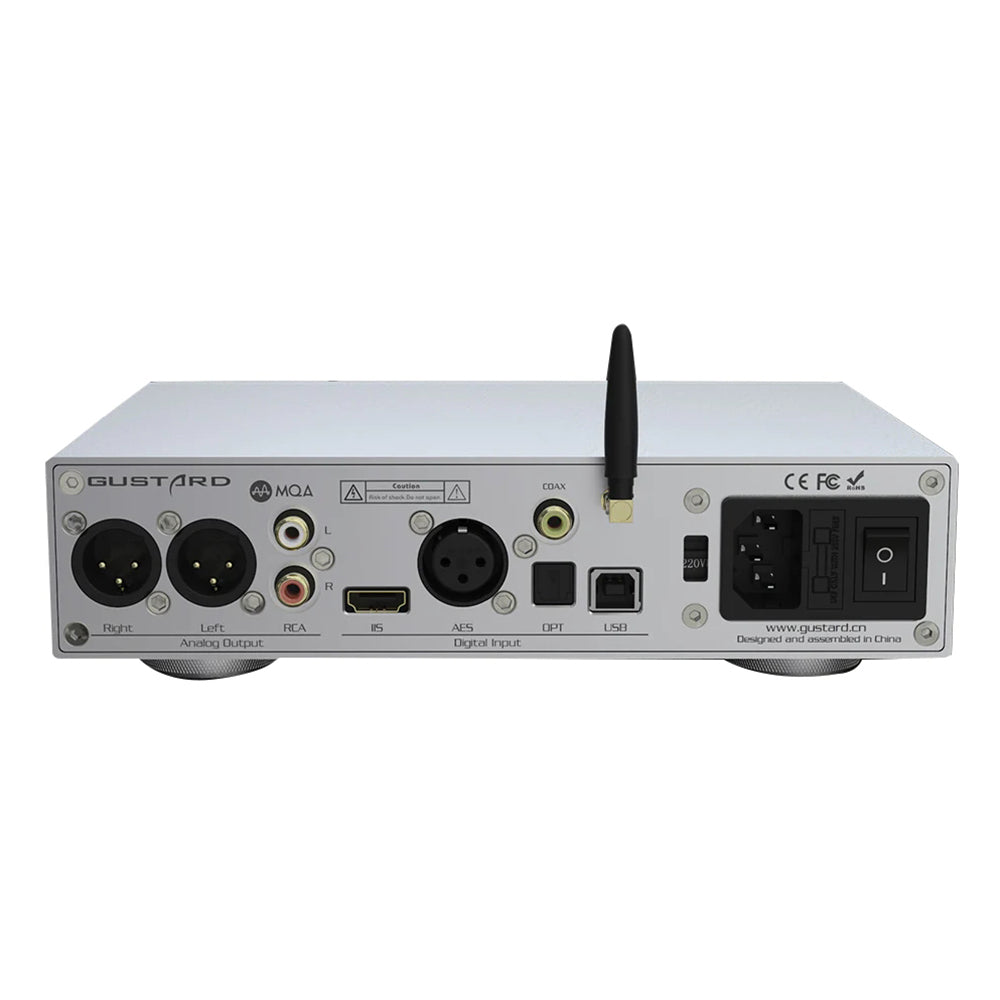

Inputs
Bluetooth 5.0
1x USB-B
1x Optical Toslink
1x Coaxial
1x AES
1x I2S via HDMI
Outputs
1x Single-ended stereo RCA
1x Balanced stereo XLR
DAC Chip
ESS ES9038Pro
USB interface
XMOS XU216
CPLD
Altera
Supported sampling rates
USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256, MQA
I2S : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD512
AES, Coaxial, Optical : PCM up to 24bit 192kHz, DSD DoP up to DSD64, MQA
Supported Bluetooth codecs
AAC, SBC, aptX, aptX LL, aptX HD, LDAC
PCM Filters
M-Fast
M-Slow
L-Fast
L-Slow
H-Fast
APO-Fast
Brick
DSD Filters
47K
50K
60K
70K
Frequency response
20Hz-20kHz ±0.08dB
Output level
RCA : 2.5Vrms @ 0dBFS
XLR : 5Vrms @ 0dBFS
Inside the Box
  • 1 x GUSTARD X18
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The GUSTARD X18 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
