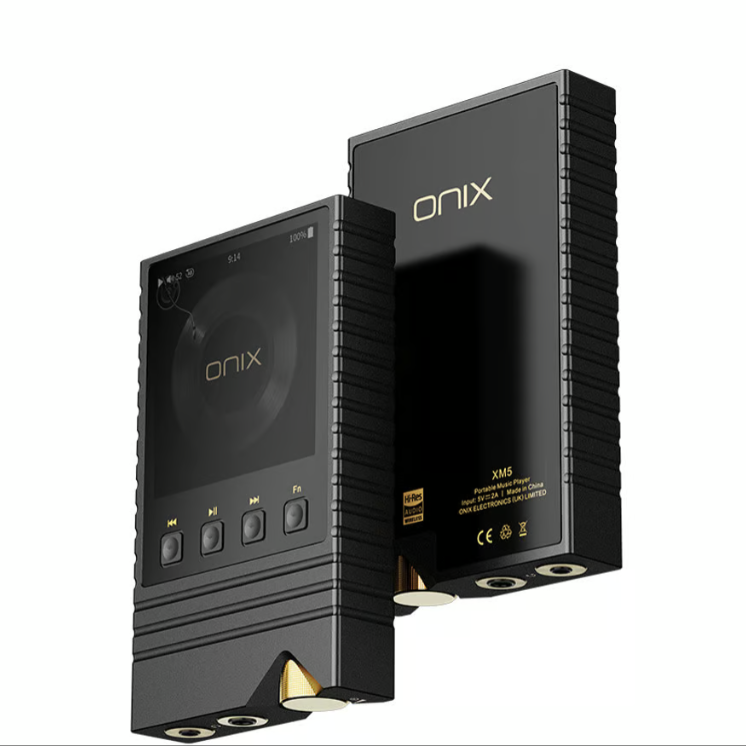

Unmistakable ONIX Design

The Overture XM5 features the classic ONIX look, modernized for today’s audiophiles. Crafted from high-grade aluminum using CNC machines, its body is both strong and beautiful. The gold-plated volume wheel adds a touch of elegance, perfectly complementing its siblings, the Miracle and Mystic.

High-End Audio Configuration

Drawing inspiration from the ONIX Miracle stack, the Overture XM5 brings the flagship ESS ES9039PRO DAC to a portable format. Expect highly detailed sound, rich in dynamics and energy, with smooth and husky vocals. Paired with two TPA6120A2 amplifiers, this device offers exceptional power, delivering over 1W @ 32 Ohm, making it a powerhouse in portable audio.

Pure Music System

Designed for the discerning audiophile, the Overture XM5 runs on the Ingenic X2000 platform, focusing solely on delivering a pristine music experience. Free from the distractions of modern smartphones, it plays Hi-Res files from MicroSD cards, streams via Tidal, or connects over DLNA/Airplay, ensuring uninterrupted high-fidelity sound.

Multifunctional Hi-Fi Component

Though primarily a portable player for headphones, the ONIX XM5 is versatile enough to fit various roles in your home, office, or dedicated Hi-Fi setup. Whether streaming YouTube from your phone over Bluetooth, serving as a USB DAC/Amp for your laptop, providing digital output for standalone DACs, or acting as an independent DAC for monoblock amplifiers, the XM5 adapts to meet the needs of audiophiles, offering limitless possibilities.

Technical Details

Dimensions
115 x 70 x 19 mm
Weight
275g
System Platform
Ingenic X2000
System
In-House Developed
Display
Square 3-inch OLED Touch Screen 720p
Playback
MicroSD Card (up to 2TB), Tidal Online Streaming
Controls
Touch Screen, 4 Hardware Buttons, Volume Wheel
Remote Controls
SyncLink through Eddict Player app (Android & iOS)
Bluetooth Connectivity
Two-Way Bluetooth 5.2
Bluetooth Codec Support
LDAC / aptX HD / aptX / SBC / AAC
Wi-Fi Connectivity
2.4G/5G, DLNA, AirPlay, Tidal
USB DAC
Dedicated XMOS XU316 Chip
Hi-Res File Support
PCM 768kHz / 32bit, DSD512
Headphone Outputs
3.5mm Single-Ended, 4.4mm Balanced
Battery
7000 mAh, standard USB-C charging port
Battery Life
Up to 14 hours SE, 12 hours BAL
3.5mm Single-Ended Output
utput Power Low Gain: 0.79V@32Ω (19mW@32Ω) (THD+N<0.002%)Output Power High Gain: 3.15V@32Ω (310mW@32Ω) (THD+N<1%)3.65V@300Ω (40mW@300Ω) (THD+N<0.02%)Output Impedance: 4.7Ω
4.4mm Balanced Output
Output Power Low Gain: 1.5V@32Ω (75mW@32Ω) (THD+N<0.0008%)Output Power High Gain: 5.7V@32Ω (1069mW@32Ω) (THD+N<1%)6.9V@300Ω (158mW@300Ω) (THD+N<1%)
Frequency Response
20Hz-40kHz (-0.5dB)
THD+N
0.0006% @32Ω (A-Weight)
Dynamic Range
121dB @32Ω (A-Weight)
Channel Separation
100dB
Signal-to-Noise Ratio
121dB @32Ω (A-Weight)
Noise
109dB @32Ω (A-Weight)
Output Impedance
6.6Ω
Inside the Box
  • 1 x ONIX Overture XM5
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

Most products within our store come with a 1 year warranty. Please check our terms of service to see more.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 1-2 weeks.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
