Excellent AK4499EX DAC chip & AK4191EQ Delta-Sigma Modulator

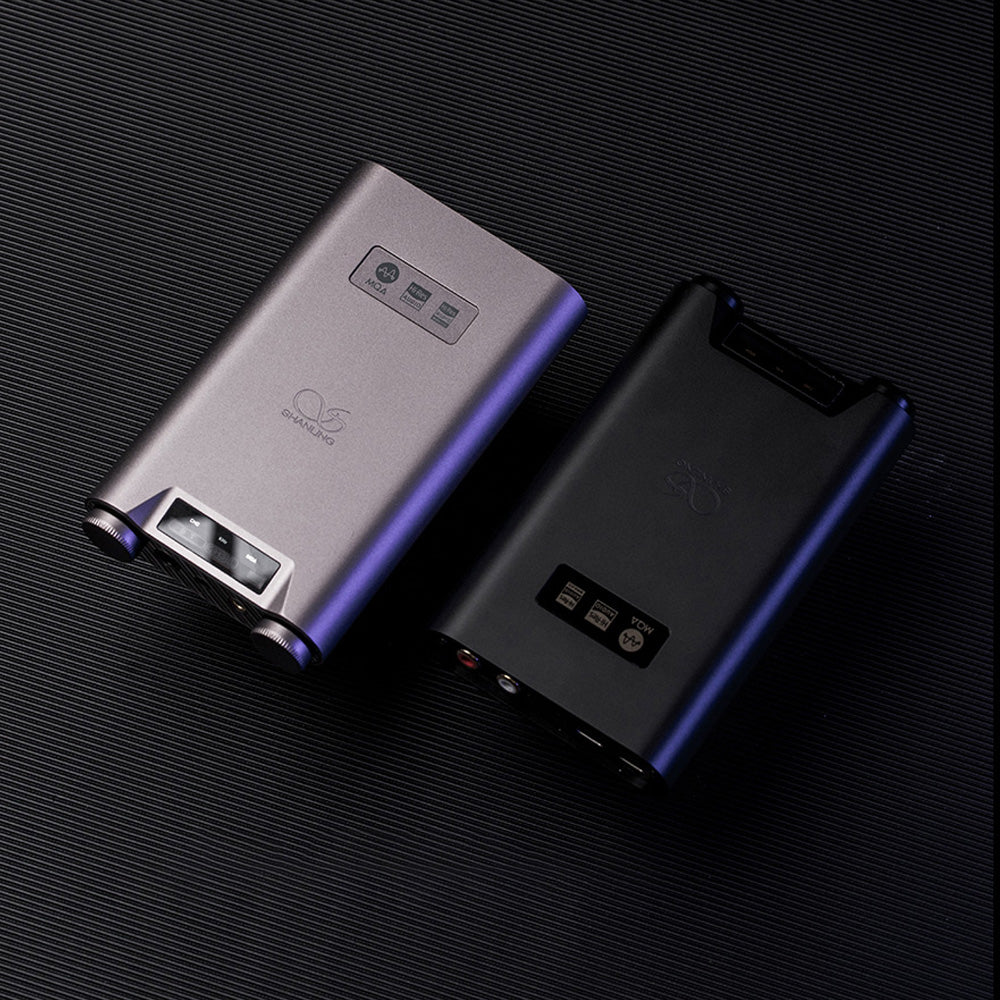

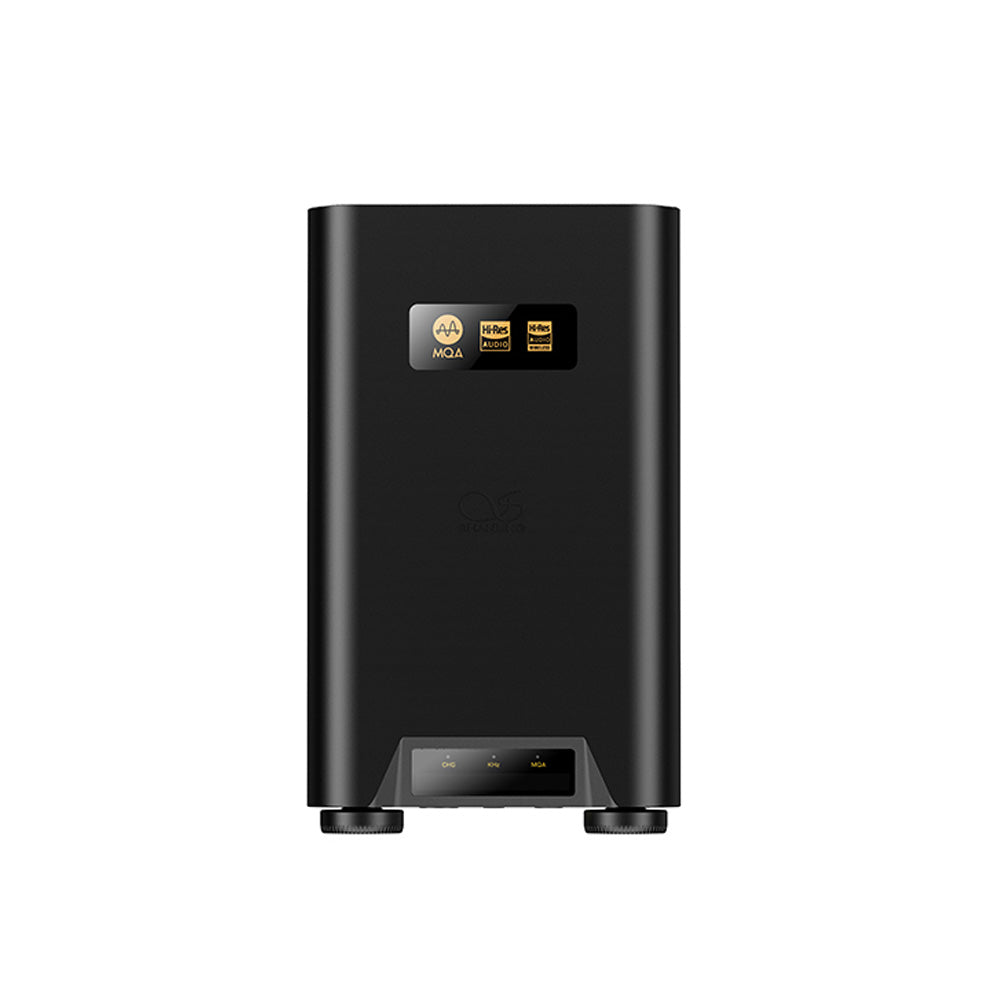

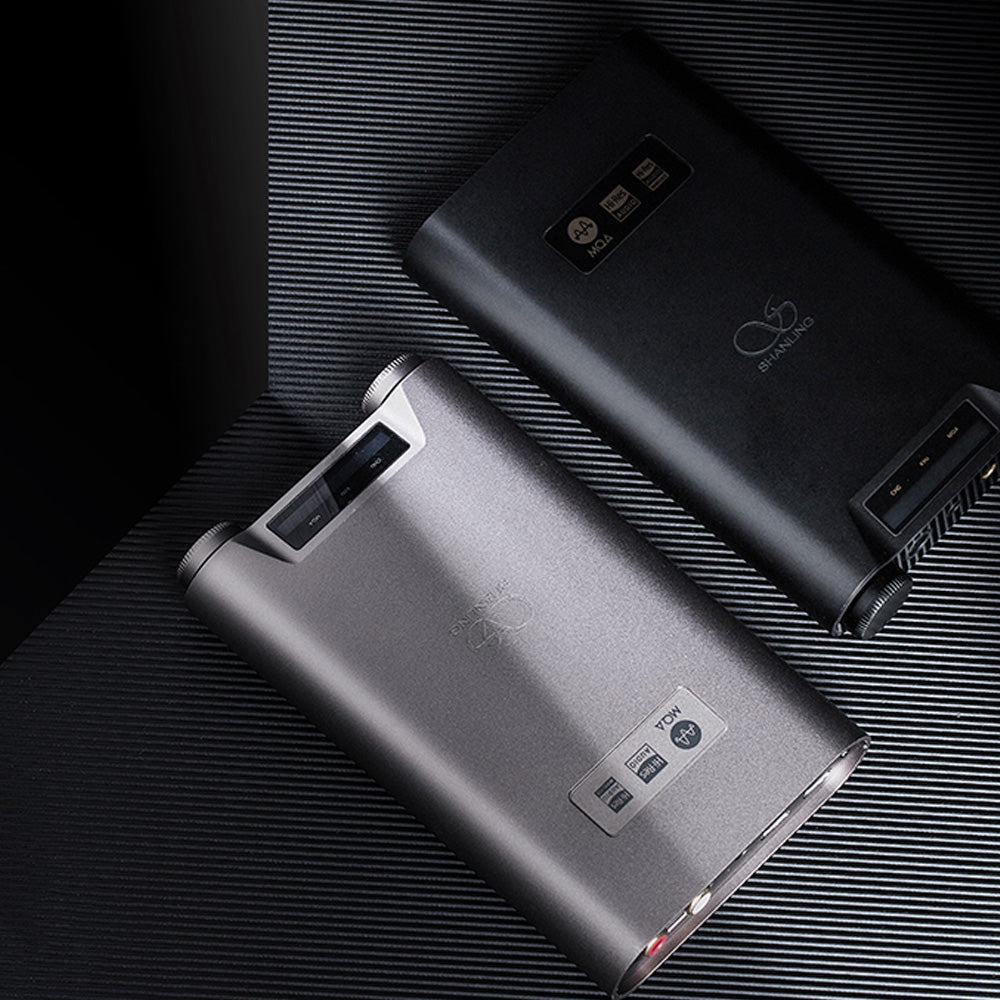

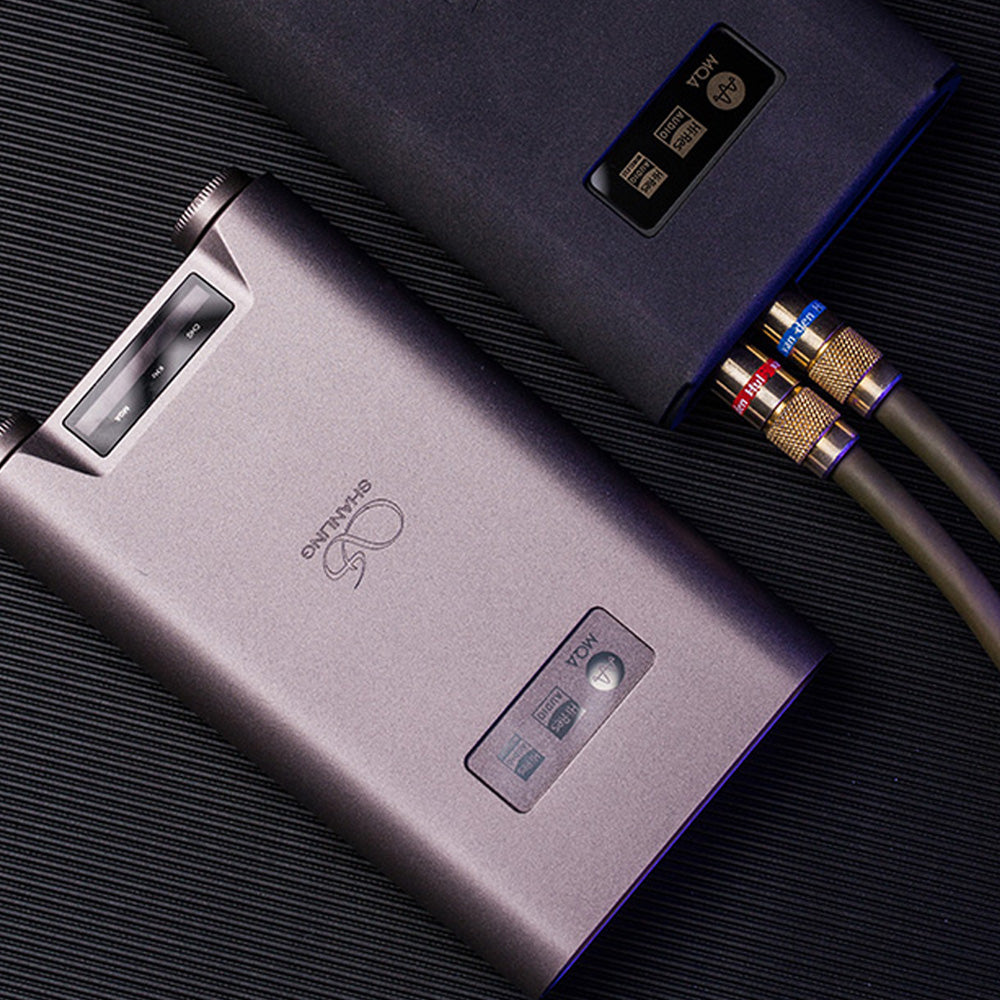

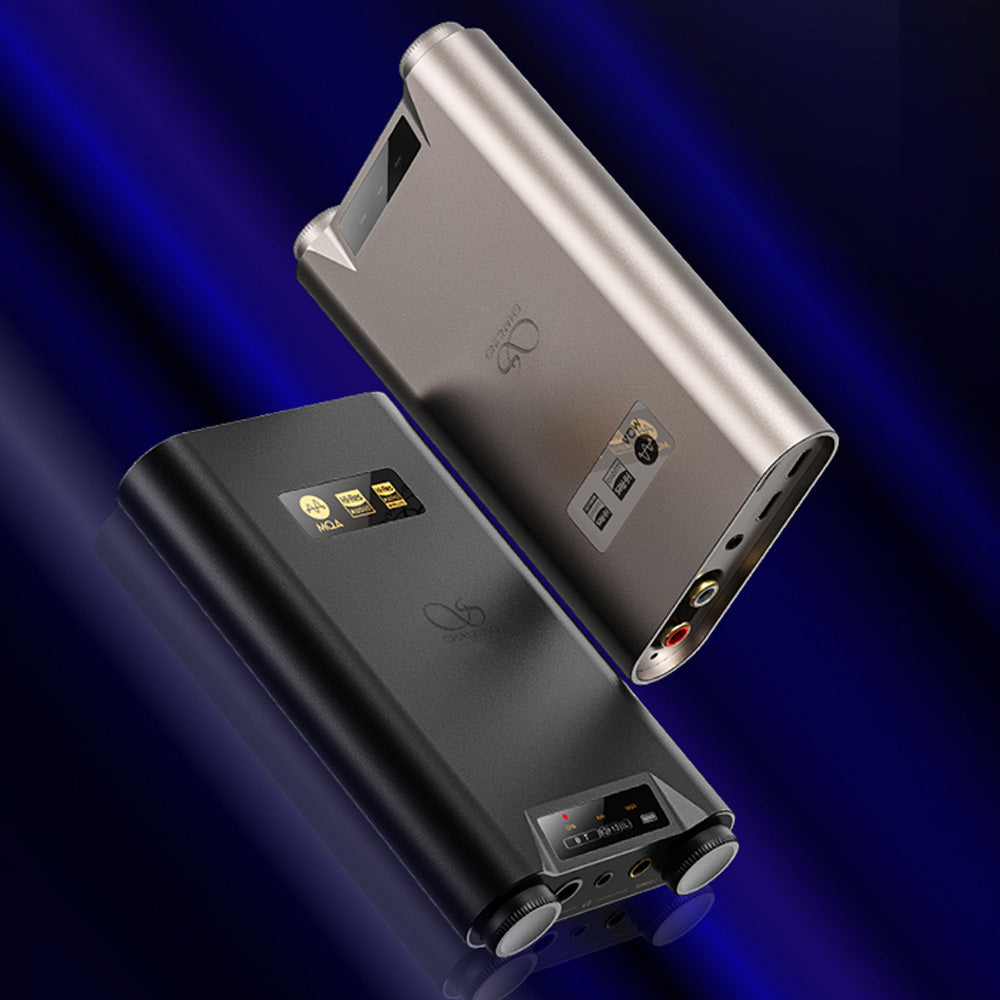

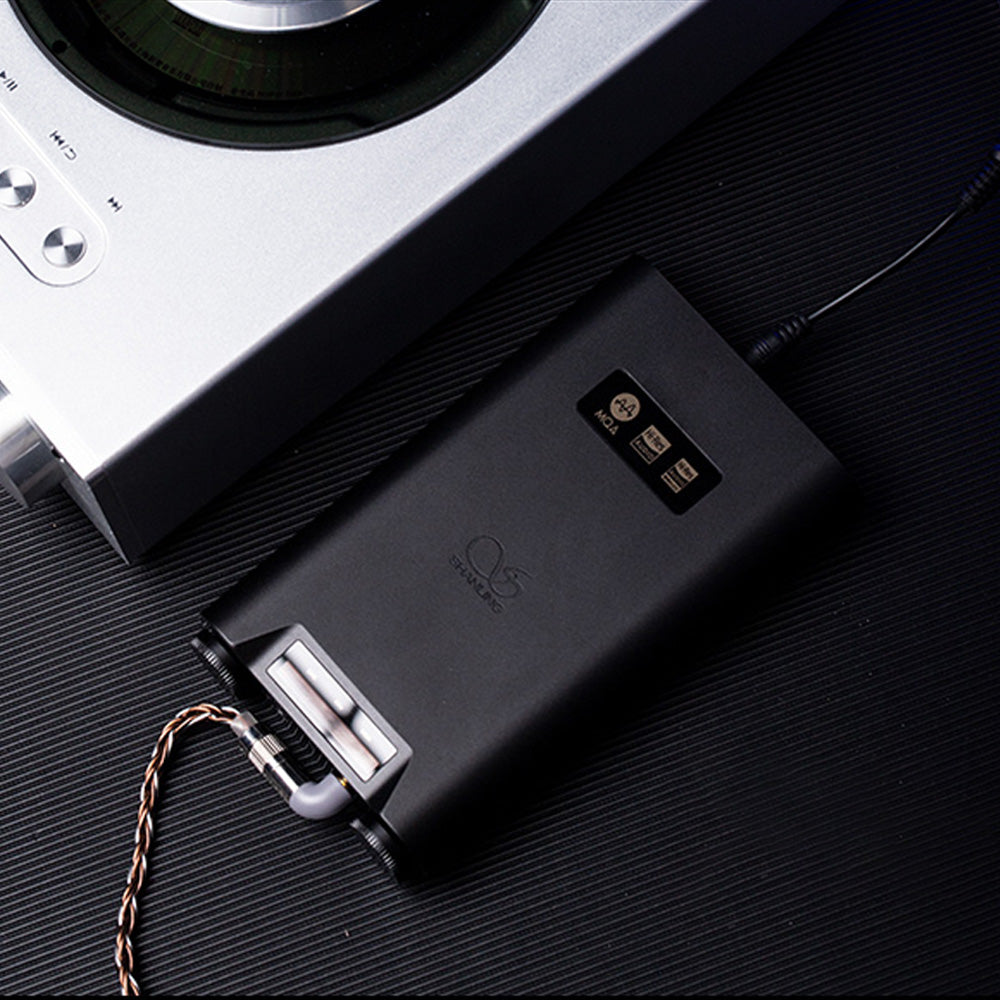

H7 is the first Shanling audio design built around the new generation of AKM's flagship DAC system. The Shanling H7 combines AK4191EQ Delta-Sigma modulator with AK4499EX DAC,splitting the Digital-to-Analog process between these two chips for improved performance in both do-mains. This unique approach implemented by AKM allows for even better sound quality, pushing ahead of the older AKM AK4499 DAC.

Unique Built-In Player

Thanks to the addition of a MicroSD card slot, H7 is capable of direct lossless playback, in the highest quality and without any cables or Bluetooth signal degradation. Users can pair H7 with our Eddict Player app to gain full control over their music libraries.

Hi-Fi Grade USB & Bluetooth 5.0 Input

Equipped with a new generation of the highly-acclaimed USB chipset, 3rd-generation XMOS XU316, the Shanling H7 can ensure the top-quality digital input. The 16-core audio solution also provides a stable asynchronous connection for high-fidelity sound and full support for Hi-Res playback of PCM, DSD and MQA files. In addition, the H7 Amplifier features Bluetooth 5.0 input for convenient wireless sound, meaning that it is easy for a connection to users’ phone or tablet.

Three Headphone Outputs & Three Gain Levels

H7 utilizes three levels of amplifier gain, assuring an ideal match with a wide range of headphones. The H7 amplifier characterizes the lowest gain for a hiss-free playback with the most sensitive in-ear earphones. Besides, this device features the high and unleash its powerful 1.3W output, feeding even the most demanding audiophile headphones.

Long-Lasting Battery & Advanced Power Management

Utilizing pair of industry standard 18650 batteries, for a combined 6800 mAh capacity, the Shanling H7 equipped with a dedicated PMU chip for advanced power management. This management is conducive to prolonging the battery life for continuous playback and overall improving lifespan of the batteries.

Technical Details

Dimensions:
142 x 85 x 25 mm
Weight:
352.5 g
Screen:
1.44-inch Screen
System:
Open Android 10
Audio formats::
DSD(".iso",".dsf",".dff") / ISO / DXD / APE / FLAC / WAV / AIFF / AlF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8/ OPUS
Hi-Res Support:
32 bit / 768 kHz, DSD 512, MQA 8x
Gain Setting:
Three Level Setting
Storage:
MicroSD Card Slot, up to 2TB
Digital Filters:
6 Preset Filters
Battery:
2x 18650
Battery Capacity:
6800 mAh
Battery Life:
Up to 10h SE / 8H BAL
Bluetooth Codec Support:
LDAC / AAC / SBC
Output Level:
•RCA Output: \
•Single-Ended Output:
Low Gain: 28mW @32 Ohm
Medium Gain: 112mW @32 Ohm
High gain: 450mW @32 Ohm
•Balanced Output:
Low Gain: 87mW @32 Ohm
Medium Gain: 348mW @32 Ohm
High gain: 1300mW @32 Ohm
Frequency Response:
•RCA Output: 20Hz - 40kHz (-0.2dB)
•Single-Ended Output:20Hz - 40kHz (-0.2dB)
•Balanced Output:20Hz - 40kHz (-0.2dB)
THD+N:
•RCA Output: 0.0006%
•Single-Ended Output:0.0009%
•Balanced Output:0.0007%
Dynamic Range:
•RCA Output: 121dB
•Single-Ended Output:121dB
•Balanced Output:123dB
Signal-to-noise:
•RCA Output: 121dB
•Single-Ended Output:121dB
•Balanced Output:123dB
Output impedance:
•RCA Output: 47KΩ
•Single-Ended Output:<1 Ohm
•Balanced Output:<1 Ohm
Channel separation:
•RCA Output: \
•Single-Ended Output:75 dB @ 32 Ohm
•Balanced Output:115 dB @ 32 Ohm
Noise:
•RCA Output: \
•Single-Ended Output:>113 dB(<1.5 uV)(Low Gain)
•Balanced Output:>111 dB(<1.5 uV)(Low Gain)
Inside the Box
  • 1 x Shanling H7
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The Shanling H7 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 2-4 weeks

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
