The Shanling M1 Plus, powered by the Ingenic X2000 processor and the latest MTouch system, delivers a comprehensive range of features in a compact package. This device supports Bi-directional Bluetooth V5.2, two-way USB connection, 3.5mm Coaxial SPDIF Out, and Wi-Fi connectivity for DLNA/Airplay, ensuring smooth local playback with expandable MicroSD card support.

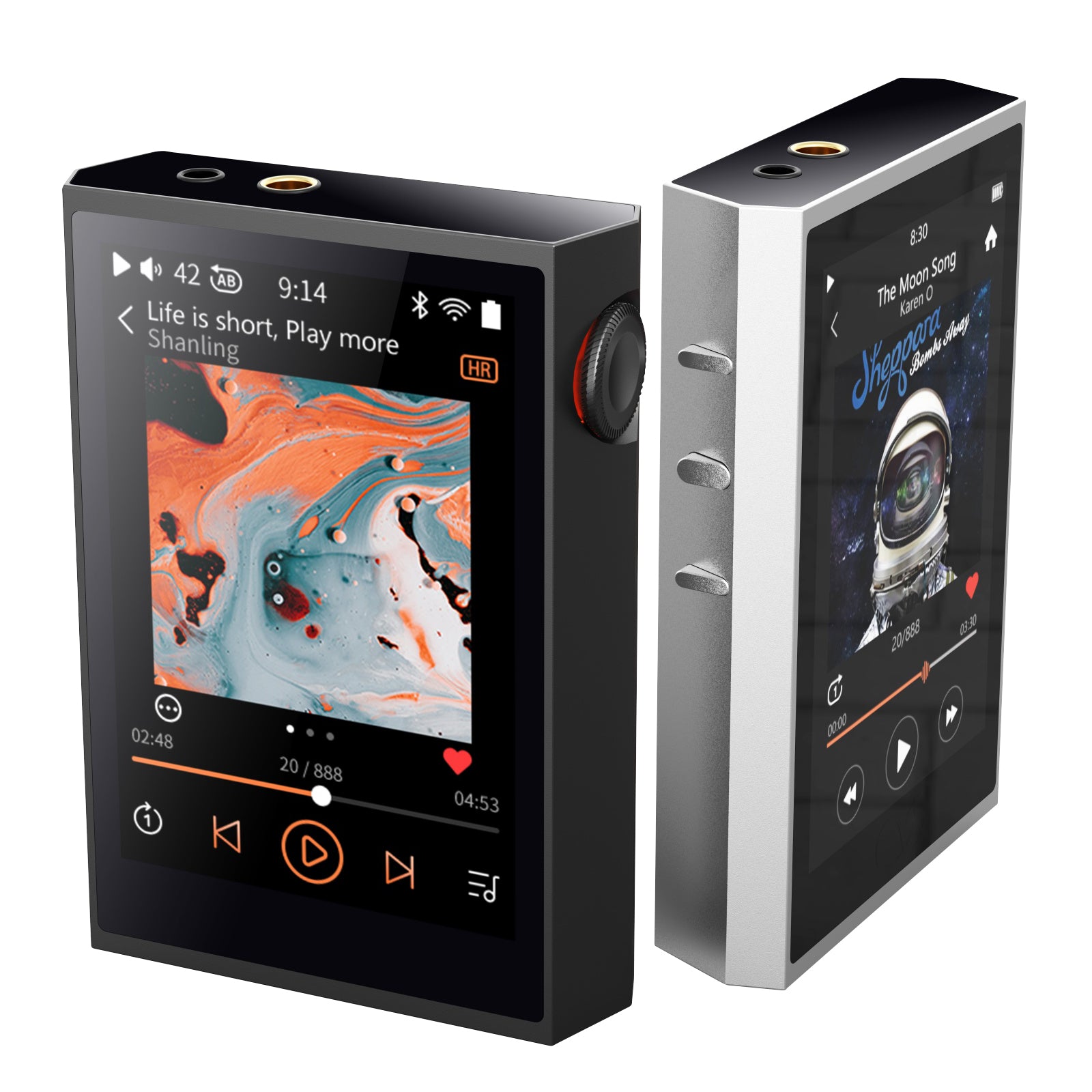

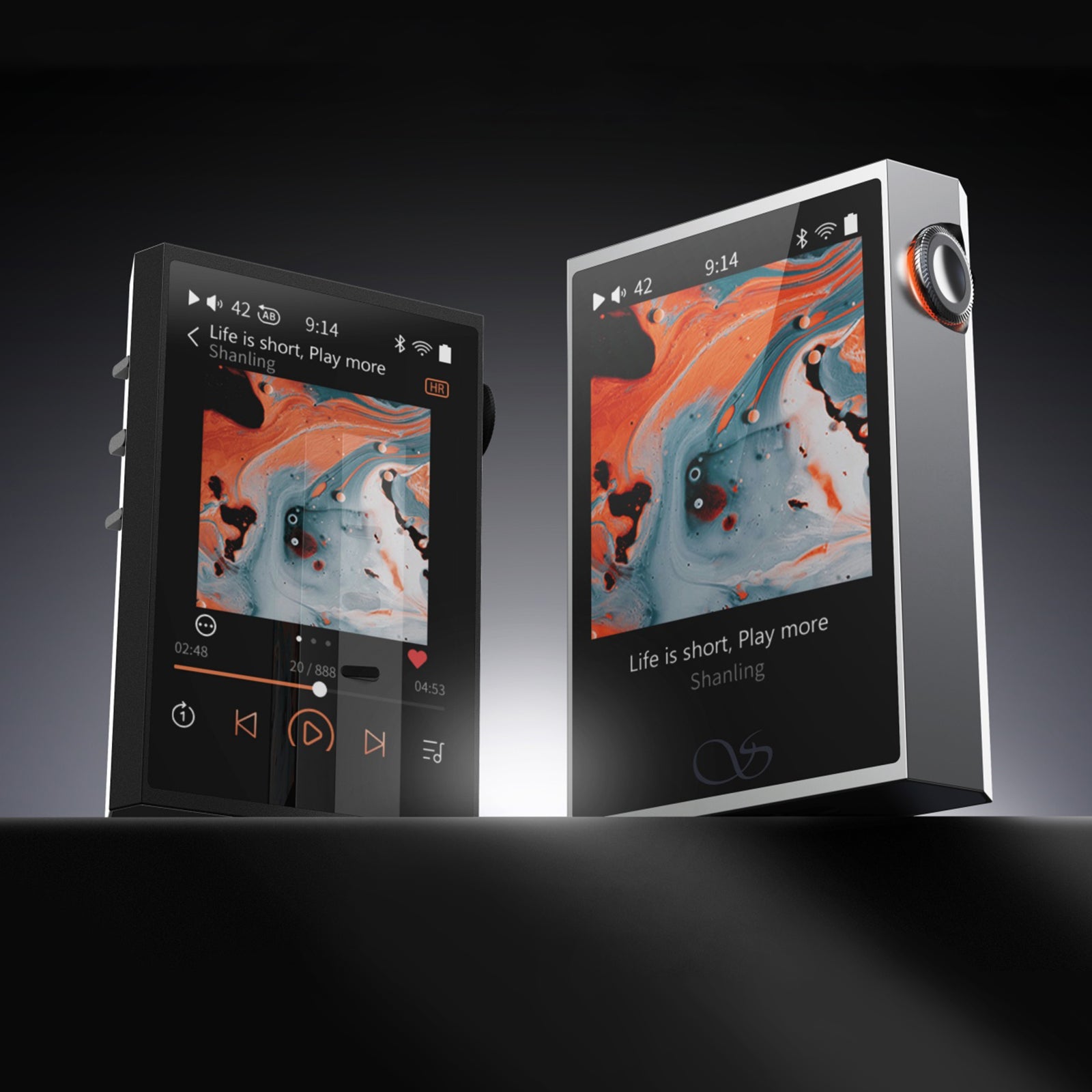

Encased in a sleek aluminum and glass body, the M1 Plus reflects the bold, modern design introduced with the M5 Ultra. Despite its compact size of just 86 x 61 x 17mm and a weight of only 116 grams, it boasts a 3.2-inch screen that strikes the perfect balance between touch controls and portability for daily use.

The audio circuit is centered around the ESS ES9069Q DAC, delivering dynamic and detailed sound. It is supported by dual SGM8262 amplifiers, providing up to 660 mW of output power at 32 Ohms, capable of driving even full-size audiophile headphones. With both 4.4mm balanced and standard 3.5mm outputs, the M1 Plus ensures compatibility with a wide range of earphones and headphones.

Technical Details

Dimensions
86 x 61 x 17 mm
Weight
116 g
DAC
ESS ES9069Q
Amplifier
Dual SGM8262
Platform
Ingenic X2000
System
MTouch developed by Shanling
Screen
3.2-inch 320 x 480 Touchscreen
Memory
MicroSD card slot
Hi-Res Support
PCM 32 bit / 768 kHz & DSD512
Wi-Fi
2.4/5G, supporting DLNA, Airplay and OTA Updates
Bluetooth
Upgraded 5.2 with Bi-Directional support of LDAC, aptX HD, aptX, AAC
Companion app
Eddict Player app through SyncLink
Connectors
3.5mm Single-Ended, 4.4mm Balanced, USB-C
Battery
2100 mAh
Battery life
Up to 12.5 hours
Single-Ended Output
Power: 195 mW @ 32 Ohm
THD+N: 0.0007%
Channel Separation: 74 dB
SNR: 122 dB
Output impedance: 0.6 Ohm
Balanced Output
Power: 660 mW @ 32 Ohm
THD+N: 0.0007%
Channel Separation: 100 dB
SNR: 122 dB
Output impedance: 1.2 Ohm
Inside the Box
  • 1 x Shanling M1 Plus
  • User Manual
