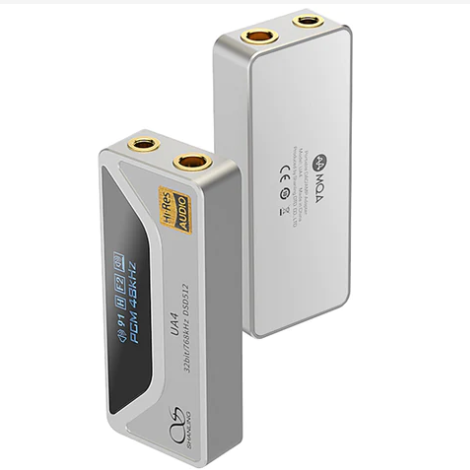

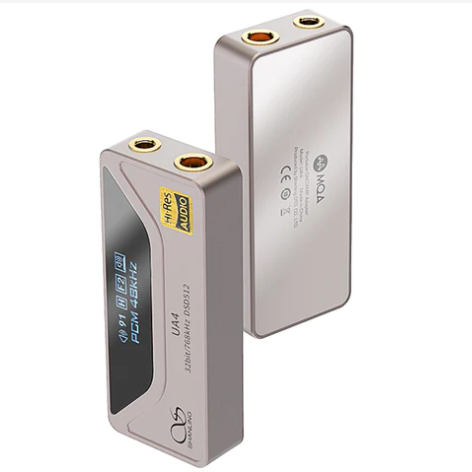

ShanLing UA4

Powerful Balanced ES9069Q USB Portable DAC/AMP

  • Advanced Sabre DAC for Superior Audio Decoding
  • Powerful Dual-Chip Amplification
  • Sleek Design with Interactive Display
  • Versatile Dual Headphone Outputs
  • Broad Compatibility Across Devices
Regular price $99.00 USD
Sale price $99.00 USD Regular price

Advanced Sabre DAC for Superior Audio Decoding:

The Shanling UA4 features the cutting-edge ES9069Q DAC from ESS Sabre Technologies. This32-bit, high-performance DAC offers excellent audio decoding with low distortion and high SNR,supporting up to 32-bit/768kHz PCM and Native DSD512 audio signals.

Powerful Dual-Chip Amplification:

Equipped with dual RT6863 amplifier chips, the UA4 delivers a robust output, providing up to211mW @ 32Ω. This high-power amp section ensures powerful and clear audio performance.

Sleek Design with Interactive Display:

The UA4 boasts an elegant design in Silver and Grey options, featuring physical media control keys for volume and playback. It includes a built-in display that presents information like bitrate, volume level, and other settings, enhancing user interaction and convenience.

Versatile Dual Headphone Outputs:

Designed for flexibility, the UA4 offers dual headphone sockets. It includes a standard single-ended 3.5mm output and a balanced 4.4mm headphone output port, catering to different audio preferences and setups

Broad Compatibility Across Devices:

The UA4's compatibility extends to a vast array of devices. It supports UAC2.0 and UAC1.0modes, ensuring easy connectivity with Windows, Mac, Android, and iOS systems. The UAC1.0mode also provides compatibility with the Nintendo Switch and other gaming systems.

Inside the Box

  • 1 x ShanLing UA4
  • User Manual

1 Year Warranty

The ShanLing UA4 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

about 20.8g
Supported specifications
768kHz/32bit, DSD512 and MQA
Gain compensation
high, low
DAC conversion chip
Digital filter
8 different filtering methods
3.5mm PO output
Output power: 2.1V@32Ω(137mW@32Ω) | Frequency response: 20Hz-40kHz (-0.7dB) | THD+N: 0.0008%@32Ω (A-Weight @1.5V) | Dynamic range: 120dB@32Ω (A-Weight) | Channel separation: 71dB@32Ω | Signal-to-noise ratio: 124dB@32Ω (A-Weight) | Output impedance: <0.4Ω
4.4mm BAL output
Output power: 2.1V@32Ω(227mW@32Ω) | Frequency response: 20Hz-40kHz (0.7dB) | THD+N: 0.0006%@32Ω (A-Weight @ 1.5V) | Dynamic range: 116dB@32Ω(-Weight) | Channel separation: 106dB@ 32Ω | Signal-to-noise ratio: 120dB@32Ω(A-Weight) | Output impedance: <0.8Ω
