Symphony in Your Palm

Crafted to impress both visually and acoustically, the SMSL DS20 combines professional-grade sound with elegant minimalist design. Black and silver metals meet in a striking form factor—sleek, solid, and ready to unleash audiophile-grade performance wherever you go.

Precision Decoding, Pure Listening

At the heart of the DS20 lies a powerful quad-CS43131 DAC configuration, delivering exceptional digital-to-analog conversion with ultra-low distortion and remarkable detail. Paired with the latest XMOS XU-316 USB processor, it supports high-resolution PCM up to 32-bit/768kHz and native DSD256. The fully balanced PLFC headphone amplifier design ensures clean, dynamic output—even for demanding high-impedance headphones—bringing out the full potential of your music with clarity and precision.

Audio Clock Circuit for Unrivaled Precision

A dedicated, high-performance audio clock circuit significantly reduces jitter, minimizes tonal distortion, and improves micro-detail retrieval. Enjoy a spacious soundstage with pinpoint imaging and immersive realism.

Dual USB Mode Compatibility

The DS20 offers flexible USB connectivity with dual-mode support. USB 2.0 ensures high-resolution audio playback on PCs and mobile devices, while USB 1.1 enables seamless plug-and-play use with gaming consoles like the PS5 and Nintendo Switch—no drivers, no hassle.

Magnetic Assembly, Built to Last

The DS20 features a magnetic backplate structure for seamless portability, while the all-metal chassis enhances durability and reduces interference. This minimalist Hi-Fi solution balances rugged construction with refined acoustics.

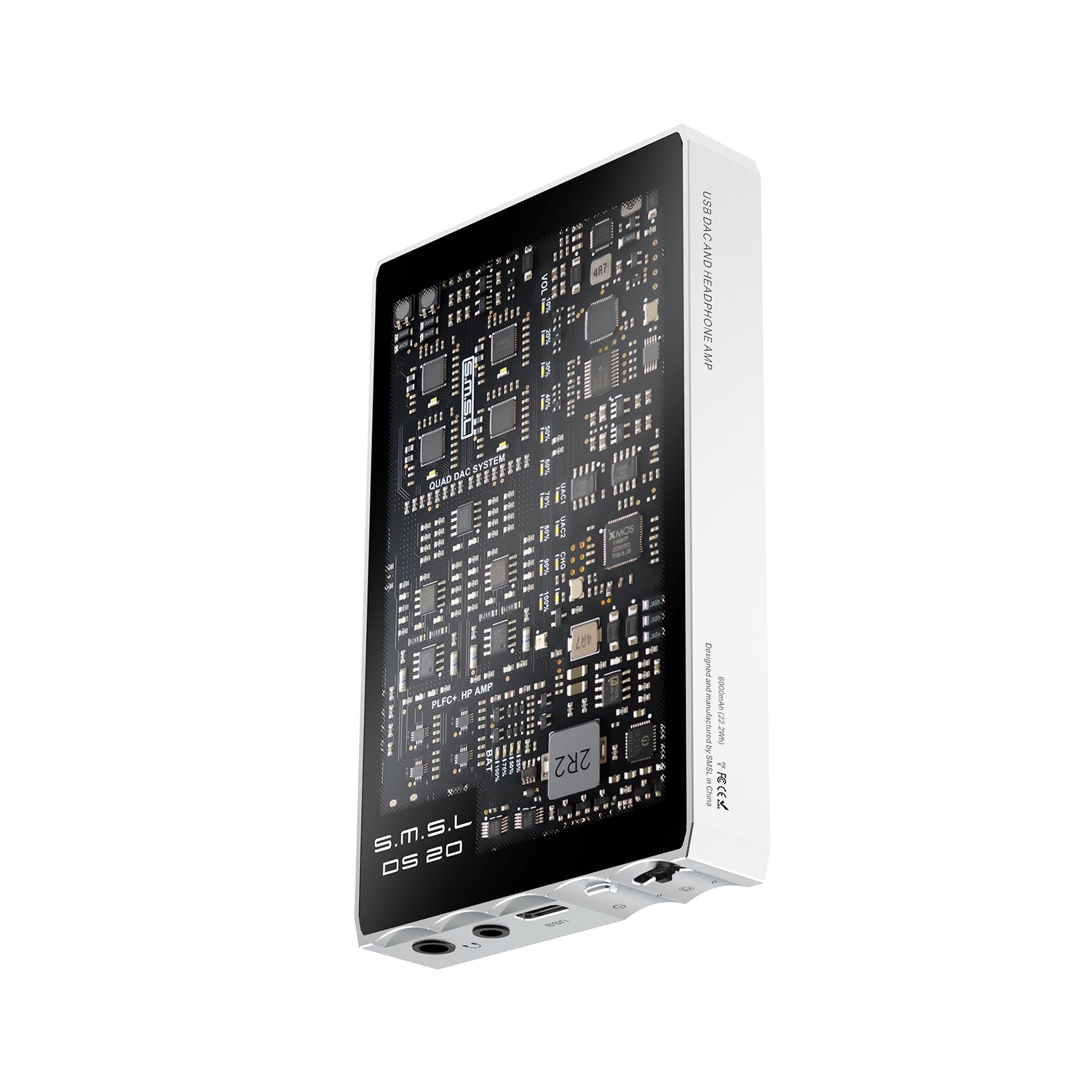

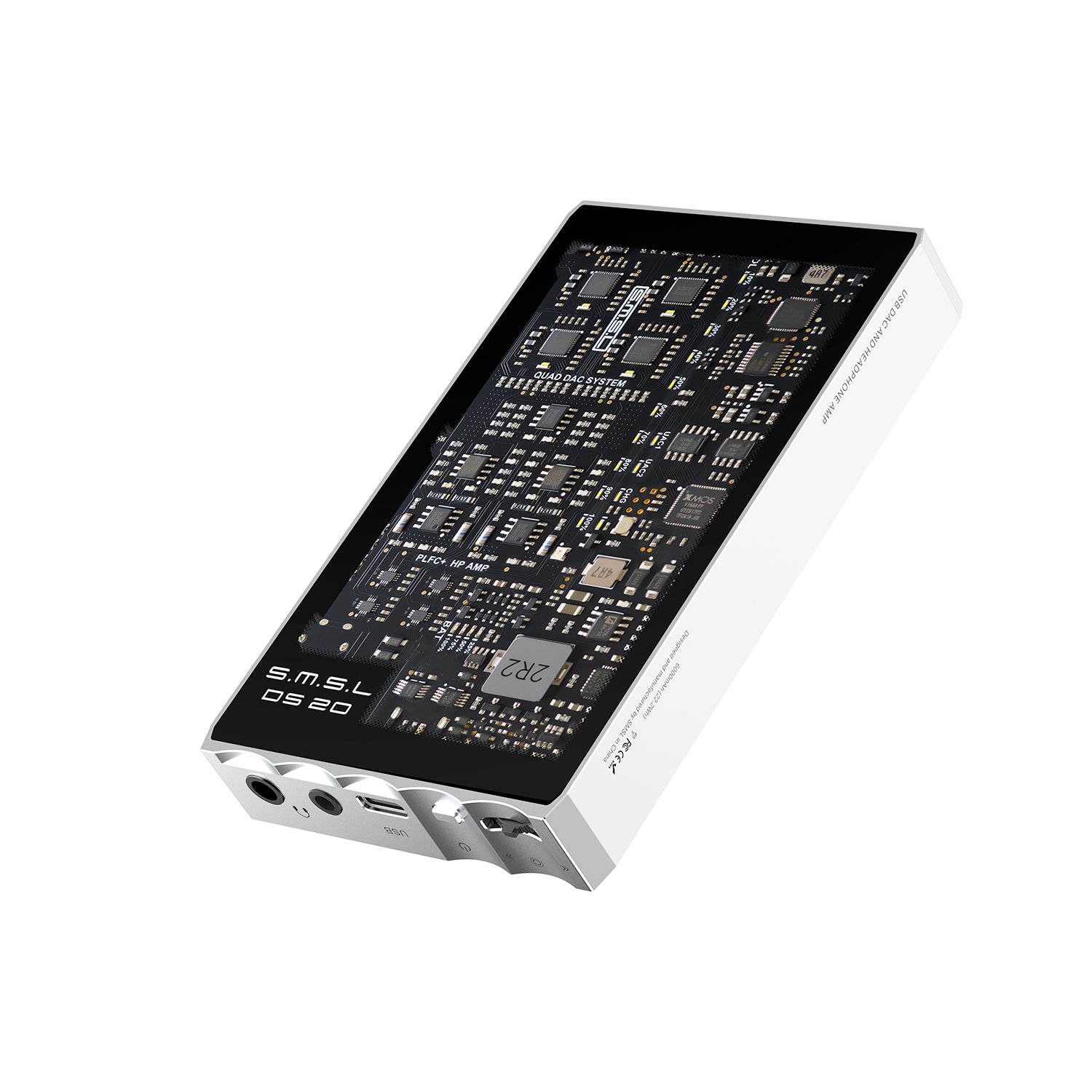

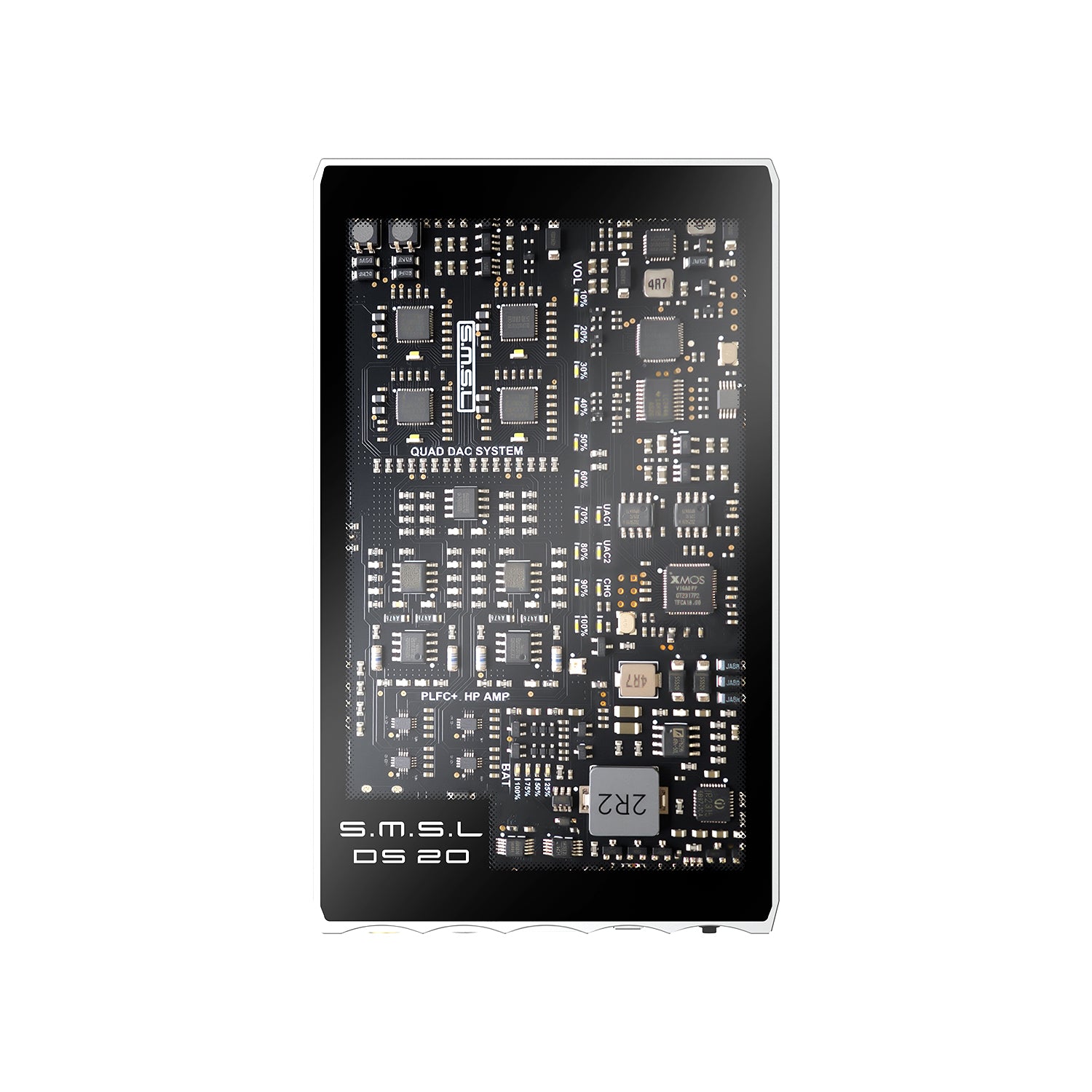

Audiophile-Grade Internal Components

Internally, every component is selected and tuned for high-fidelity playback. From capacitors to circuitry, the DS20 is engineered for listeners who demand true-to-source sound reproduction.

Redefining Portable Audio Standards

Hardcore engineering meets refined sonic performance—SMSL’s DS20 isn't just a DAC/AMP; it's your passport to high-resolution listening, anywhere, anytime.

Technical Details

USB Transmission
Asynchronous
Operating Systems
Windows 7/8/8.1/10/11, macOS, Linux, Android, iOS
USB Compatibility
SONY PS4 / PS5, Nintendo Switch
Bit Depth
1-bit, 16–32bit
Sampling Rates
PCM 44.1kHz–768kHz, DSD 2.8224MHz–11.2896MHz
Battery Capacity
6000mAh (22.2Wh)
Dimensions (W×H×D)
71×17×118.5mm
Weight
275g
Inputs
USB
Outputs
3.5mm Single-Ended Headphone Out, 4.4mm Balanced Headphone Out
Output Level
3.5mm 3Vrms, 4.4mm 6Vrms
Output Power (per channel)
16Ω 500mW, 32Ω 500mW, 64Ω 350mW, 150Ω 240mW, 300Ω 120mW, 600Ω 60mW
THD+N (Unweighted)
0.0002%
Inside the Box
  • 1 x SMSL DS20
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The SMSL DS20 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is currently in its pre‑order period. Pre‑orders apply to items not yet in stock, and shipping will begin once they arrive. Processing times are estimates only.

Pre-order Period: 4 to 5 weeks.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
