3rd Generation XMOS XU-316 Solution

SMSL SK-10 MKⅢ employs a 3rd-generation XU316 USB processor chipset from XMOS Technologies, allowing for clear transmission of high-resolution audio signals via the input port and handing them over to the DAC chipset. With the help of this latest USB Chip, the SK-10 MKⅢ decodes high-resolution 32-Bit/768kHz PCM and native DSD512 signals.

AKM New AK4493S Chipset & CK-03 Clock System

Equipped with the latest-generation AK4493S AKM DAC chipset, SMSL SK-10 MKⅢcan help deliver high-resolution audio signal decoding with ultra-low distortion ratings. Besides, this device comes with a new CK-03 upgraded digital clock architecture, ensuring high-quality signal transmission with ultra-low jitter noise.

Built-in Gravity Acceleration Sensor & High-Performance Power Filtering System

Utilizing a built-in gravity acceleration sensor, which can automatically switch the direction of the display, the SMSL SK-10 features a built-in high performance power filtering system for optimal performance using only USB port power.

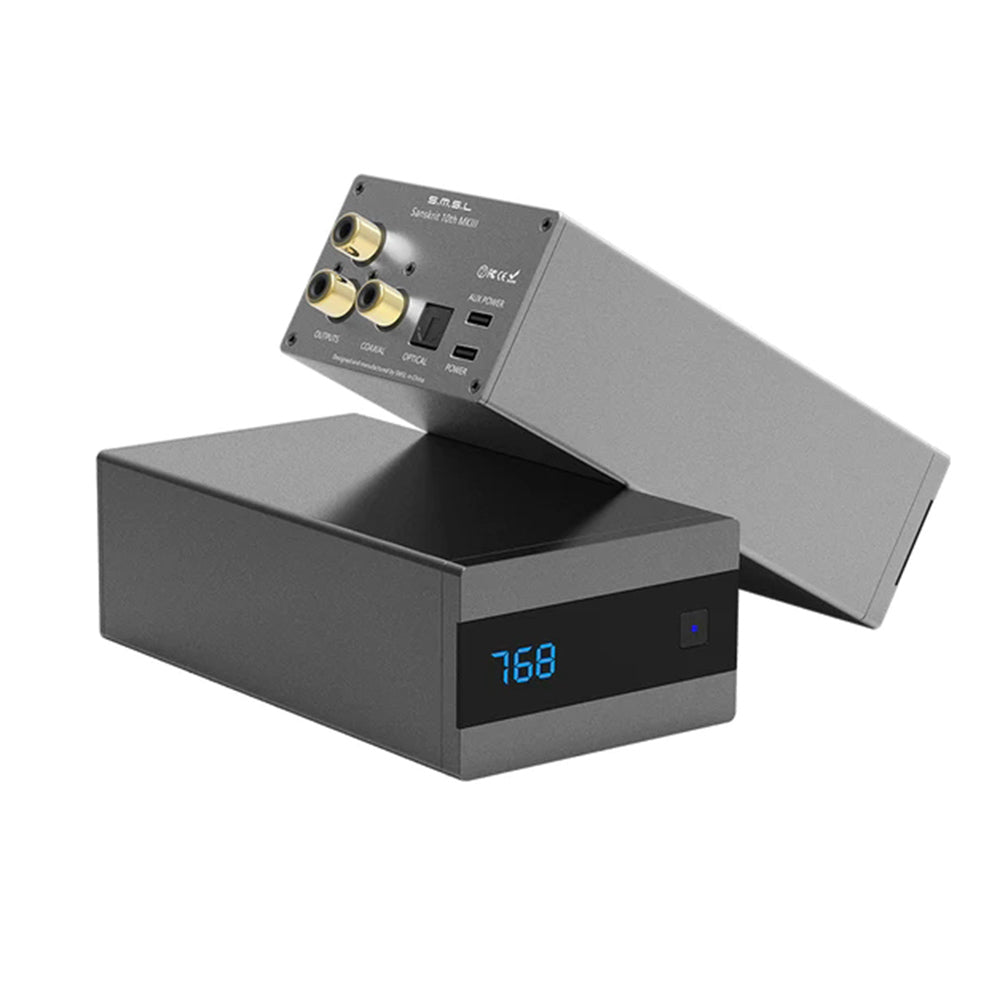

CNC Aluminum Housing

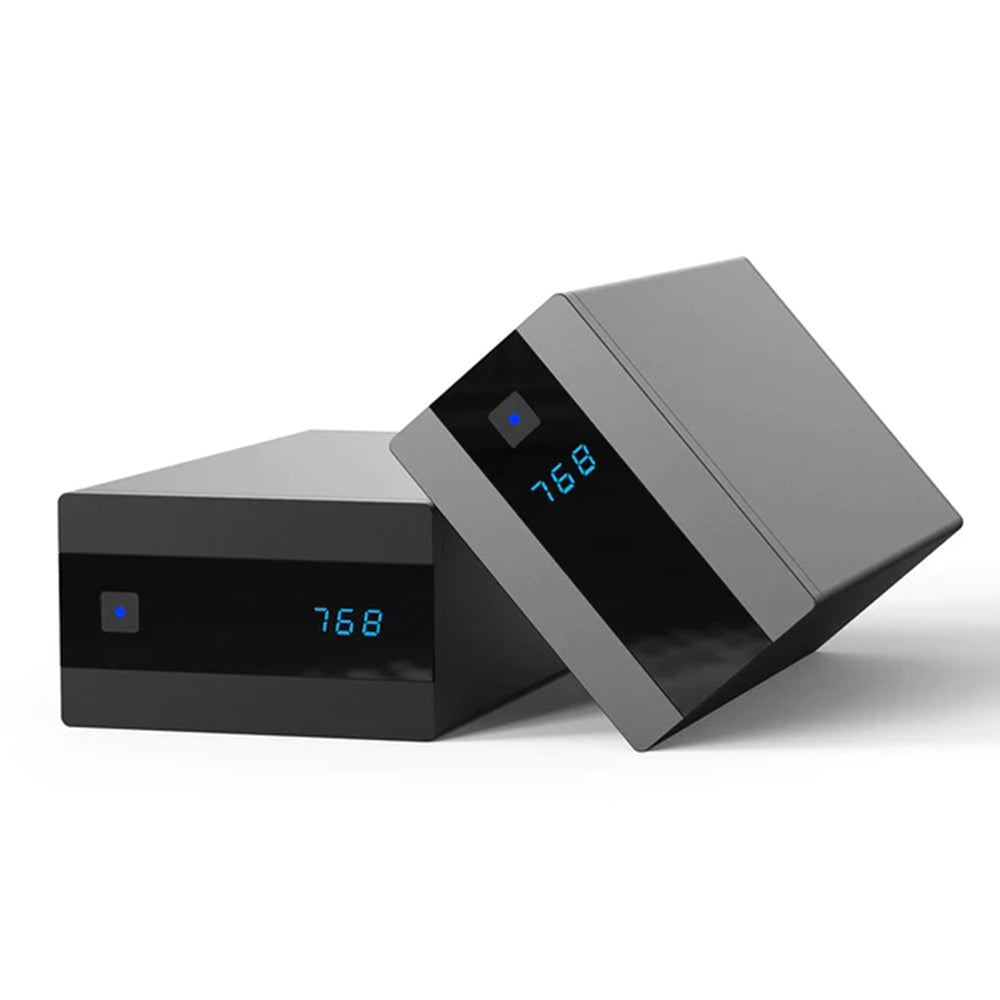

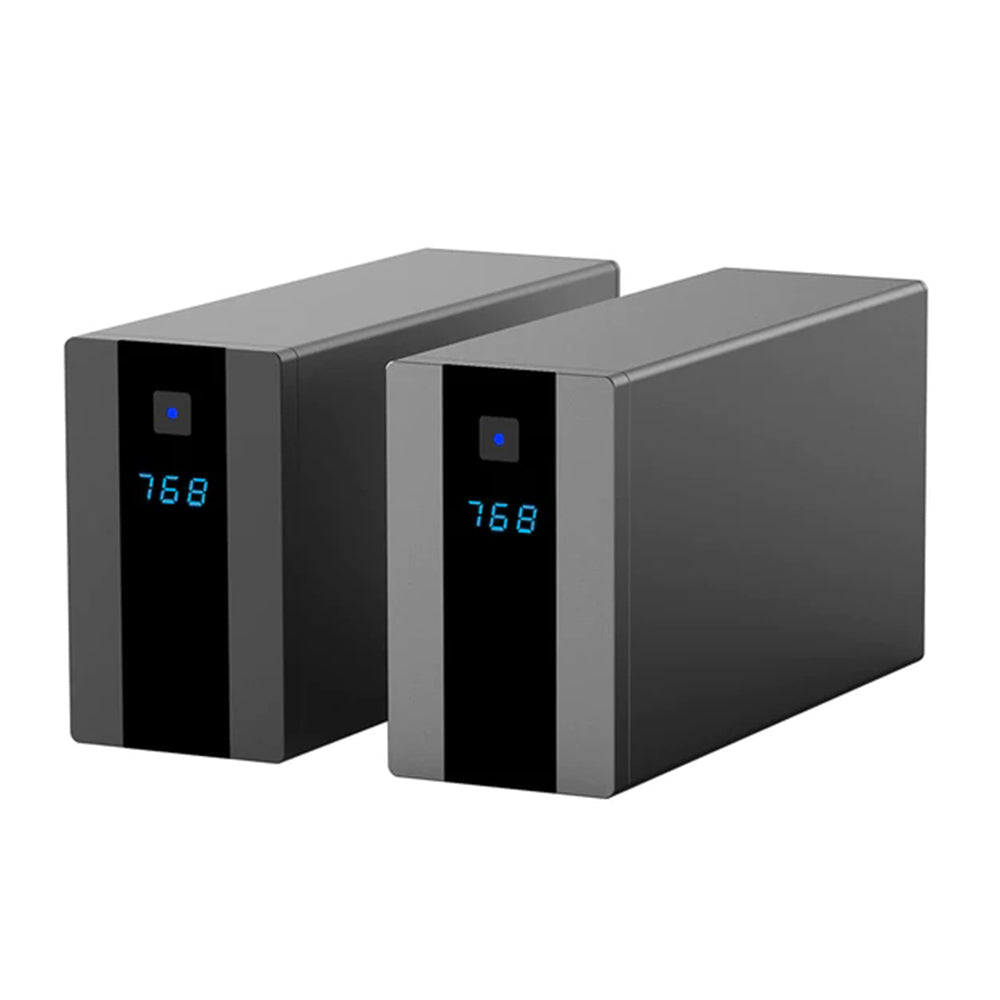

The SMSL sk-10 characterizes a professional shape design with anodized CNC aluminum housing, improving not only good sound quality but also the durable appearance. Besides, this device also has three placement modes to satisfy users’ needs.

Wireless Remote Control & Multiple Input Options

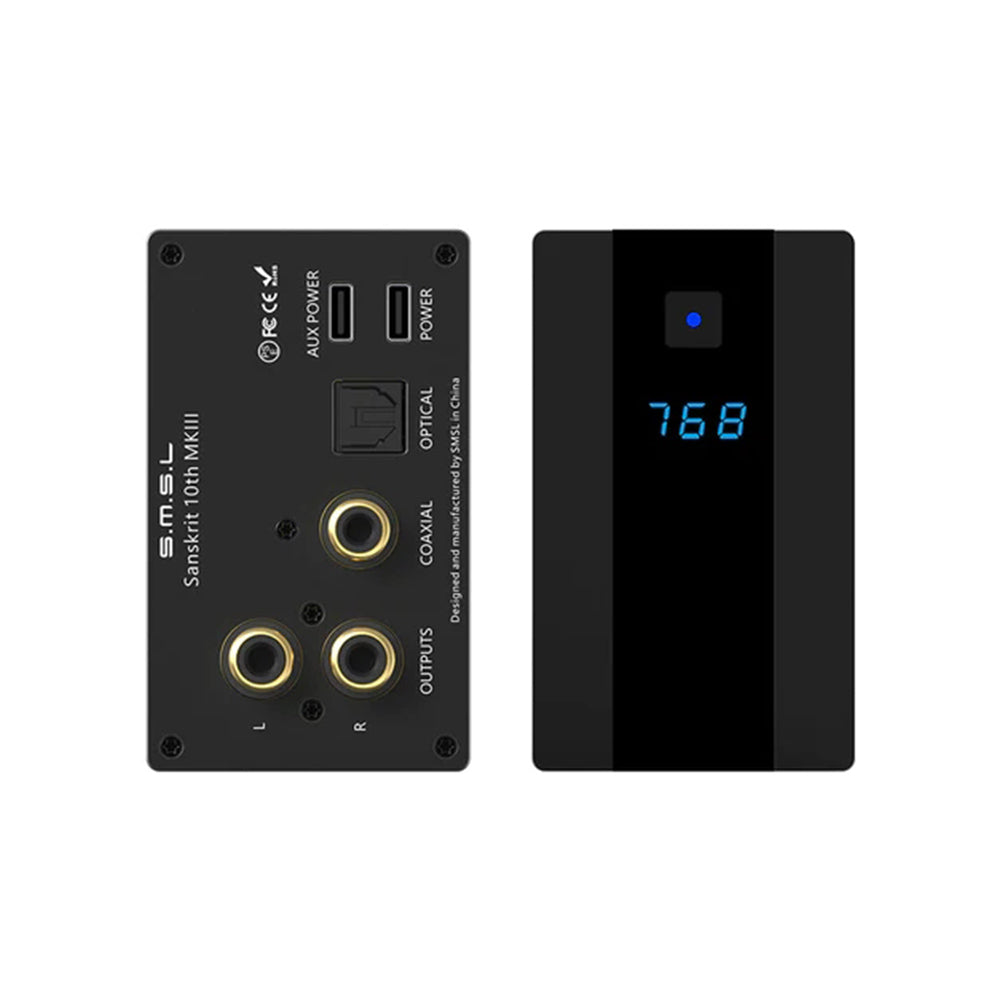

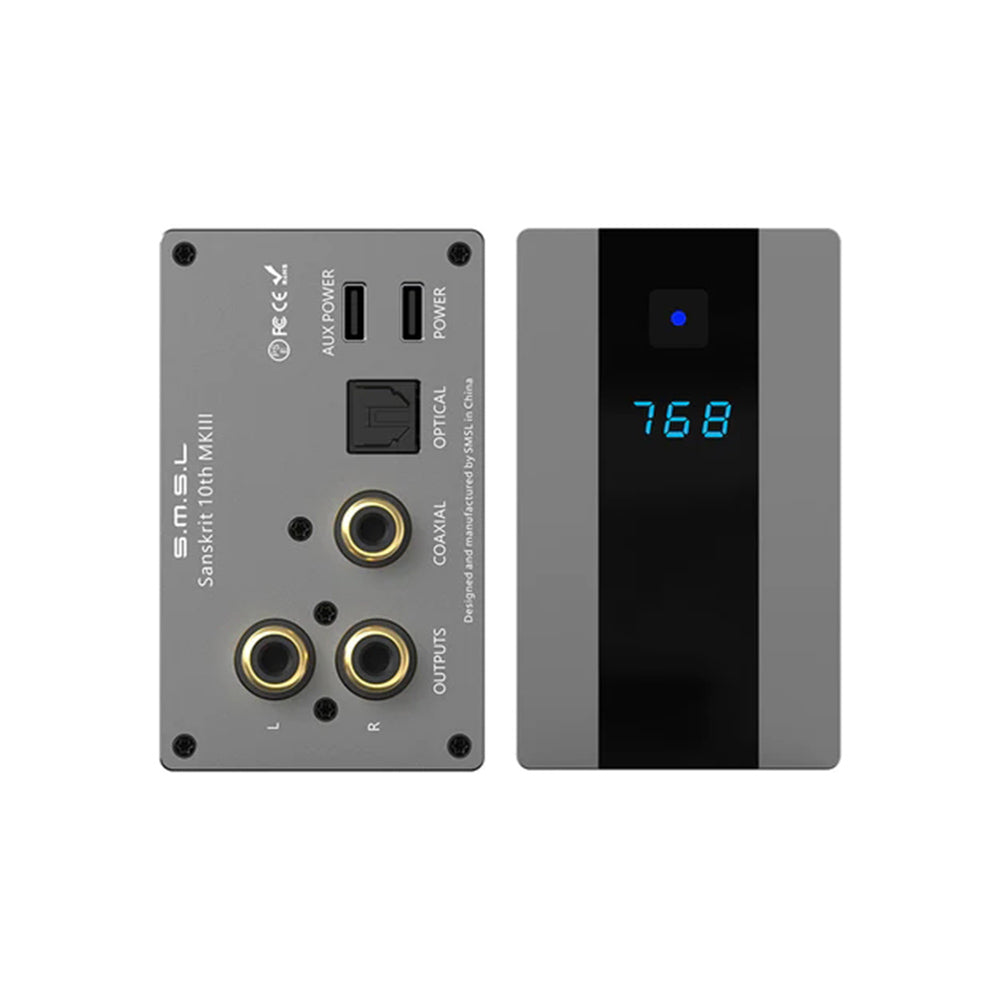

SMSL includes wireless remote control with the SMSL SK-10 MKⅢ. Every single function can be easily accessed and every single setting on the DAC can be adjust when using the remote control. Besides, the MKⅢnot only has a USB input but also supports digital SPDIF inputs via the provided Coaxial and Optical ports. As for output, we have an RCA line-out option.

Technical Details

Input:
USB /Optical / Coaxial
Output Level:
2.0Vrms
THD+N:
0.00013%(117dB)
Dynamic range:
121dB
SNR:
121dB
USB compatibility:
Windows 7/8/8.1 /10/11
Mac OS X10.6 or later / Linux
Bit depth:
USB: 1bit ~ 32bit
Optical/coaxial: 16bit ~ 24bit
Sampling rate:
•USB
PCM: 44.1 ~768kHz
DSD: 2.28224~22.5792MHz
•Optical/coaxial: 4.1kHz ~192kHz
Power Consumption:
<5W
Standby power:
0.1W
Size:
75x45x144 (WxHxD)
Weight:
320g
Inside the Box
  • 1 x SMSL SK-10 MKIII
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The SMSL SK-10 MKIII Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: Expected to be available in early December

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
