Dual CS43131 DAC Architecture

SPACE II retains the proven dual-CS43131 DAC architecture of the SPACE series, delivering clean conversion, low distortion, wide dynamic range, and excellent detail retrieval. The dual-DAC configuration provides a solid foundation for a refined and transparent listening experience while maintaining the compact size that makes SPACE II ideal for portable use.

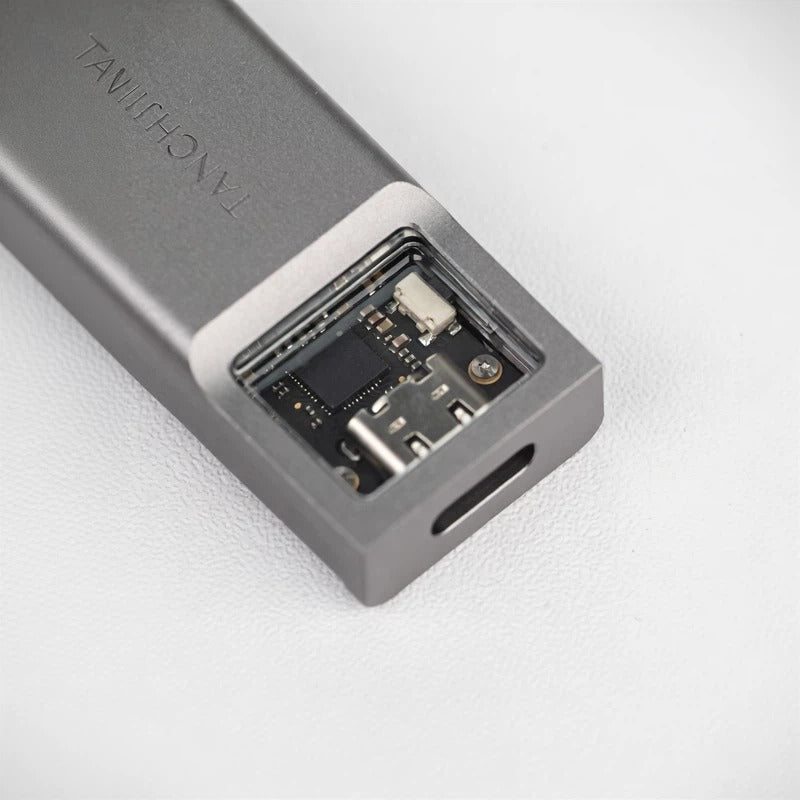

TANCHJIM PureBridge USB Interface

The major upgrade comes from TANCHJIM's self-developed PureBridge USB digital interface chip. It manages USB data reception, UAC protocols, audio streams, and clock domains before the signal reaches the DACs, helping create a more stable digital signal path and reducing transmission-stage variables for consistent high-resolution playback.

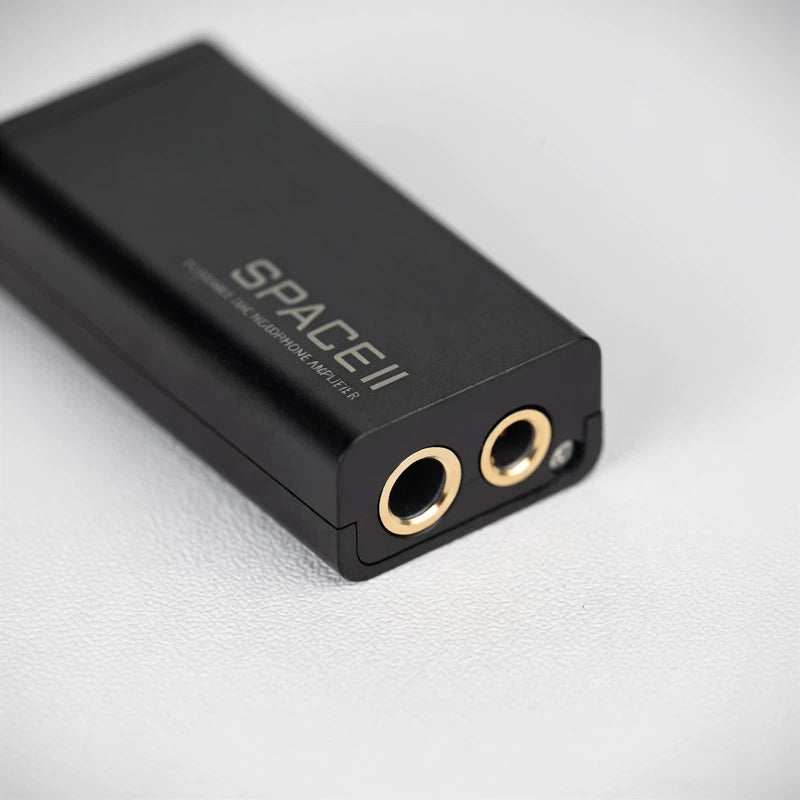

3.5mm & 4.4mm Dual Outputs

SPACE II provides both 3.5mm single-ended and 4.4mm balanced outputs for flexible system matching. The 3.5mm output offers broad compatibility with everyday IEMs and headphones, while the 4.4mm balanced output provides higher voltage swing and up to 4Vrms output, making it suitable for more demanding listening setups.

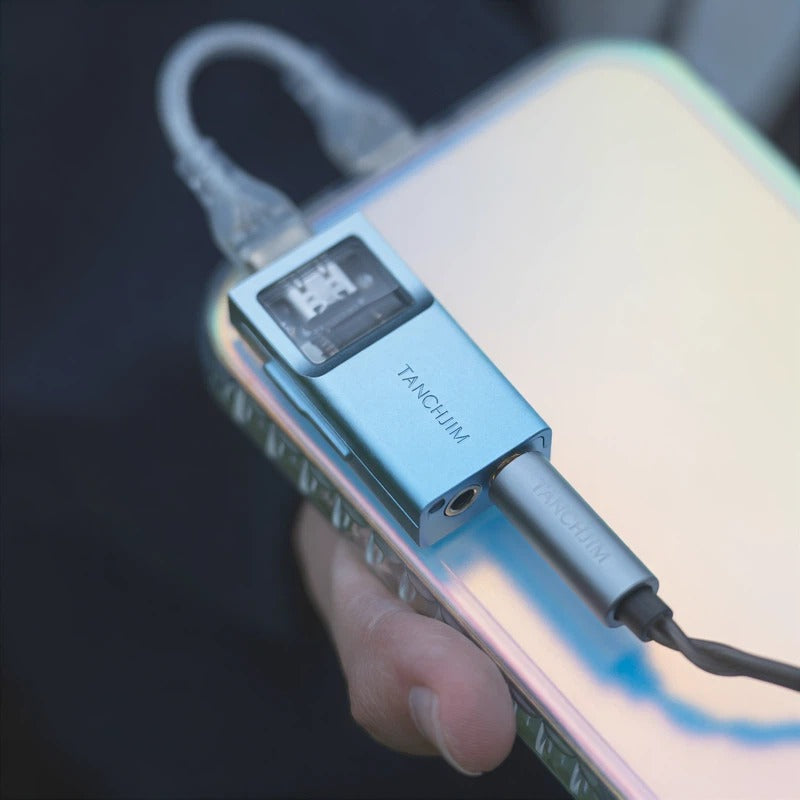

Compact Design with Powerful Performance

Despite weighing only approximately 15.1g, SPACE II delivers up to 235mW of output power at 32Ω. Its compact aluminum alloy CNC-machined body is designed for effortless portability, allowing you to bring high-resolution audio performance wherever you go without adding significant bulk to your setup.

High-Resolution Audio & Dual UAC Modes

SPACE II supports PCM up to 32-bit/384kHz and is compatible with both UAC 1.0 and UAC 2.0 modes. UAC 2.0 enables high-resolution playback, while UAC 1.0 improves compatibility with a wider range of devices, including smartphones, tablets, computers, and handheld gaming consoles.

DSP Sound Preset Community

SPACE II goes beyond fixed sound output with TANCHJIM DSP sound tuning and community preset support. Users can apply official sound profiles or explore shared presets designed for different IEMs, headphones, music genres, gaming, and video. This allows the same compact DAC/Amp to deliver a wider range of personalized listening experiences.

3.5mm CTIA Microphone Support

The 3.5mm output also supports CTIA-standard microphone input, allowing compatibility with common wired earphones featuring inline microphones. Whether for everyday calls, voice chat, or gaming, SPACE II provides convenient voice communication with near-zero latency.

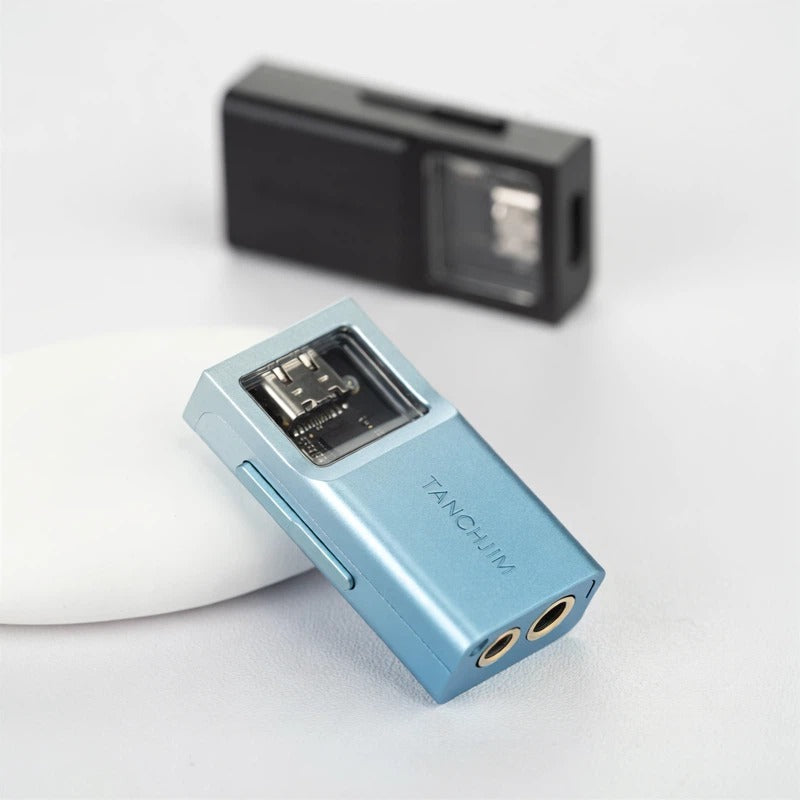

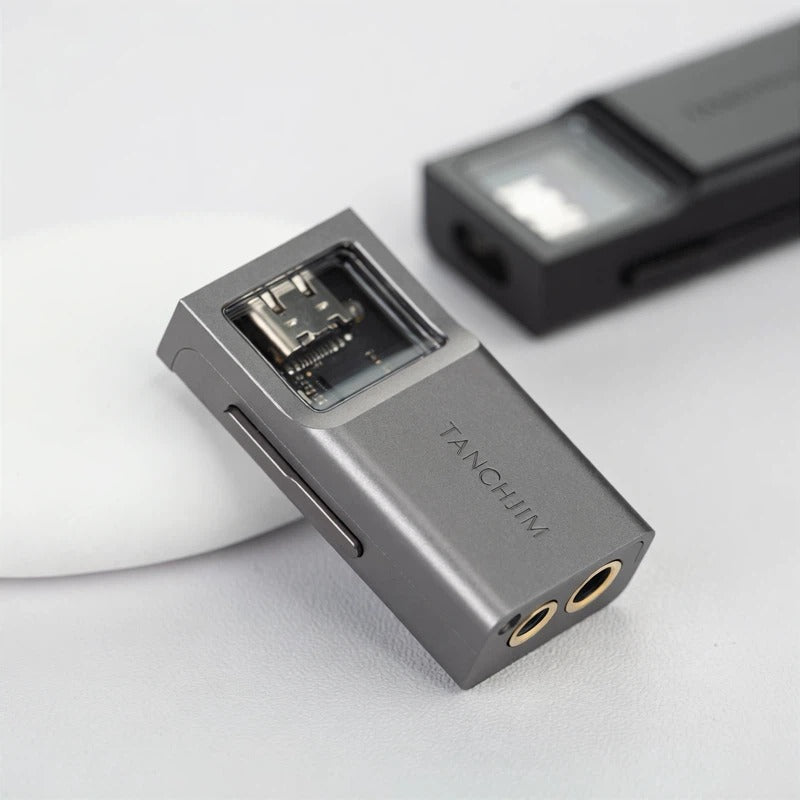

Aerospace-Grade Aluminum CNC Construction

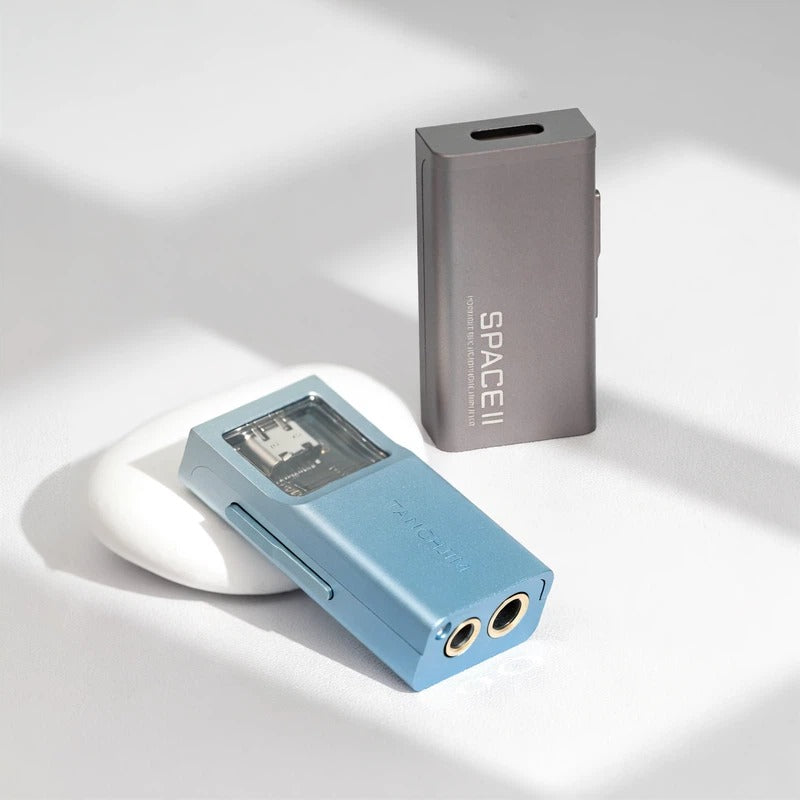

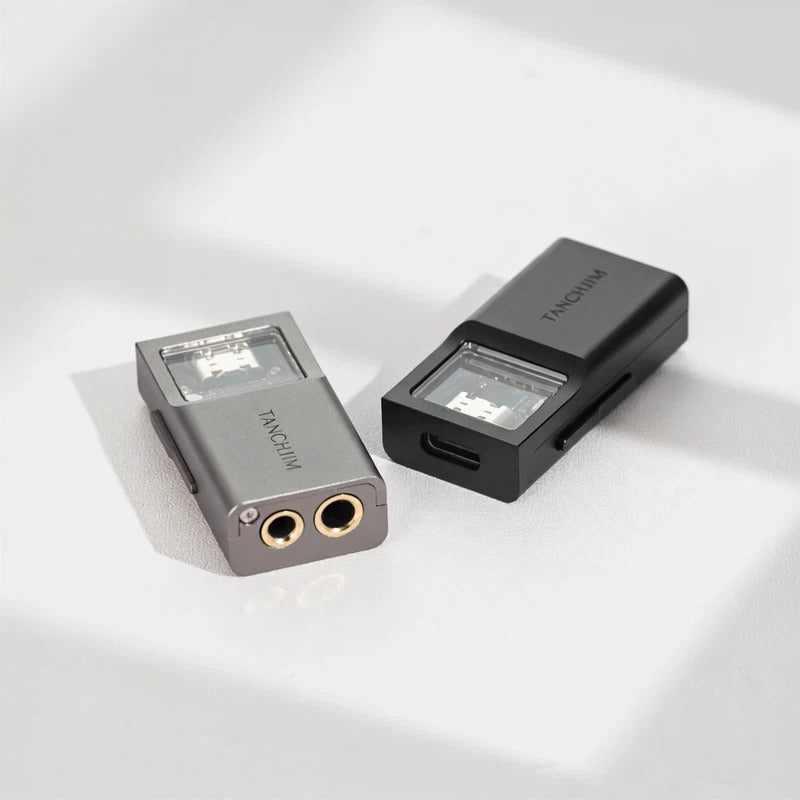

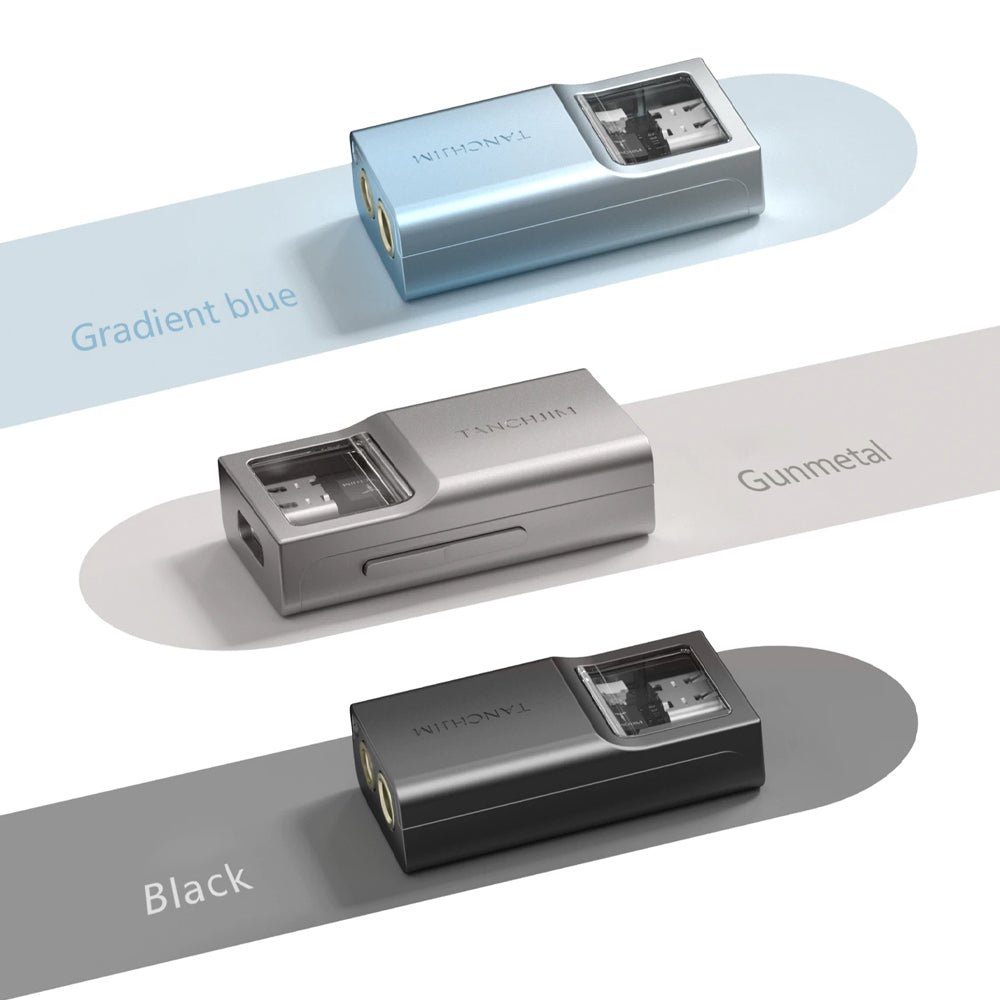

SPACE II continues the SPACE series' distinctive aerospace-grade aluminum alloy CNC-machined construction with a transparent window design. Available in Gradient Blue, Gunmetal, and Deep Black, the three finishes combine a modern technical aesthetic with the compact form factor of a truly portable DAC/Amp.

Technical Details

Brand
TANCHJIM
Model
SPACE II Portable USB DAC/Amp
Place of Origin
Dongguan, China
DAC Architecture
Dual CS43131
USB Bridge Chip
TANCHJIM PureBridge Chip
Input Port
USB Type-C
Output Ports
3.5mm Single-Ended / 4.4mm Balanced
PCM Support
32-bit / 384kHz
DSD Support
DSD256
Output Level
3.5mm
Output Power
Up to 235mW @ 32Ω
Dynamic Range
Up to 132.2dB
THD+N
As Low As 0.000156%
SINAD
Up to 116dB
Compatible Impedance
8–300Ω
UAC Mode
UAC 1.0 / UAC 2.0
DSP
HiFi Sound Preset Community / Gaming Presets / Virtual Soundstage
Material
Polymer Clear Window + Aluminum Alloy

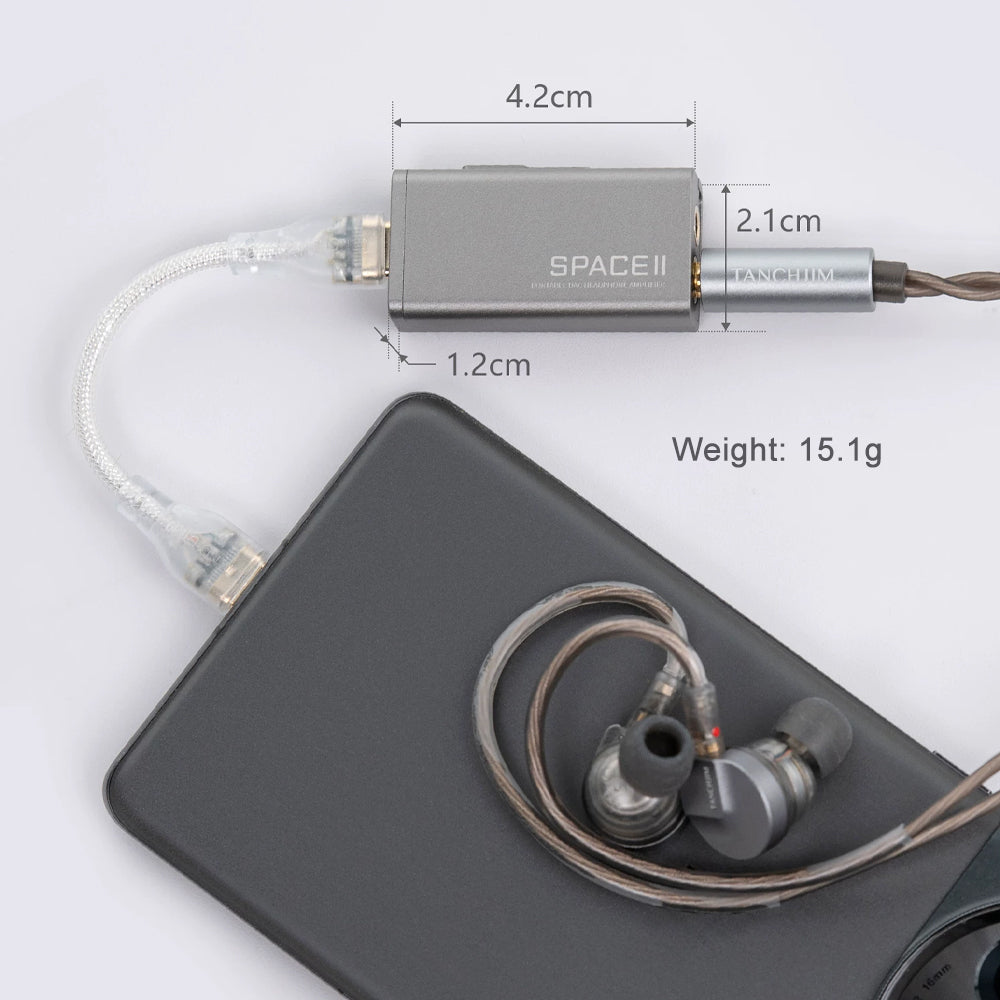

Dimensions
Approx. 4.2 × 2.1 × 1.2cm
Weight
Approx. 15.1g
Inside the Box
  • 1 x TANCHJIM SPACE II
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The TANCHJIM SPACE II Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is currently in its pre‑order period. Pre‑orders apply to items not yet in stock, and shipping will begin once they arrive. Processing times are estimates only.

Pre-order Period:

  • 3-4 days.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
