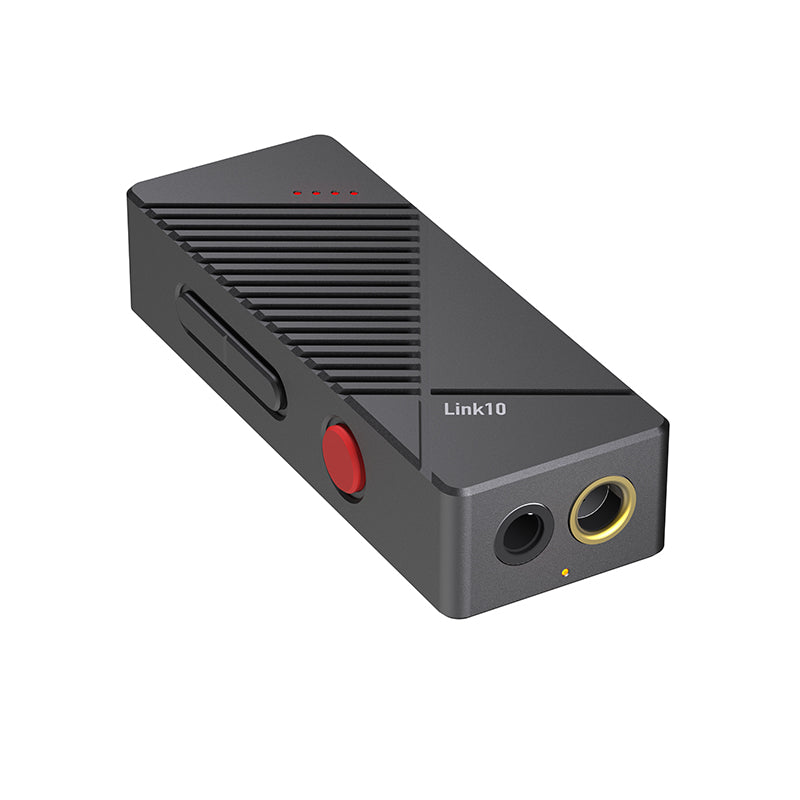

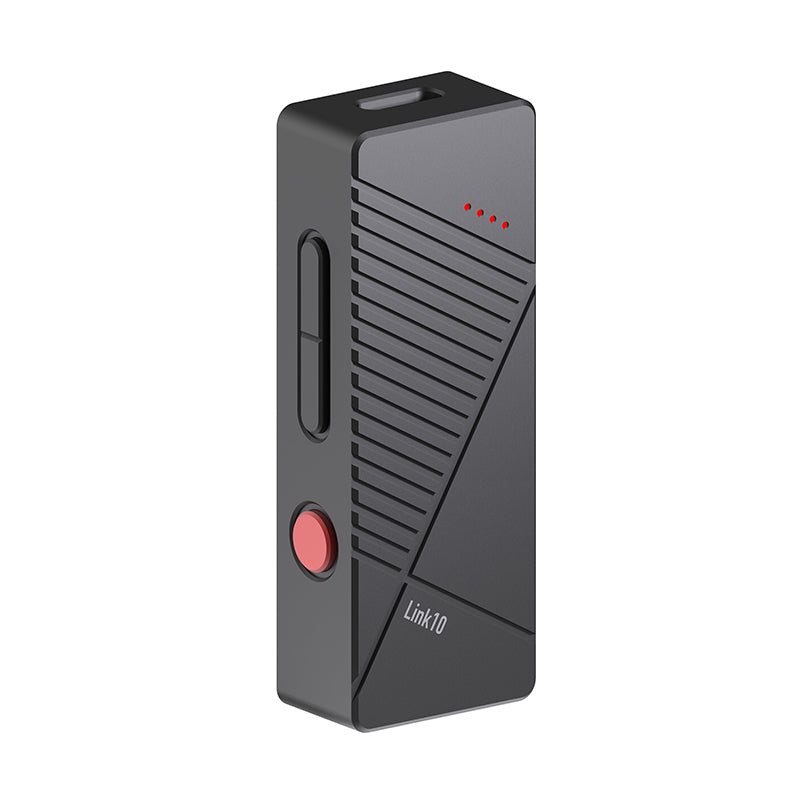

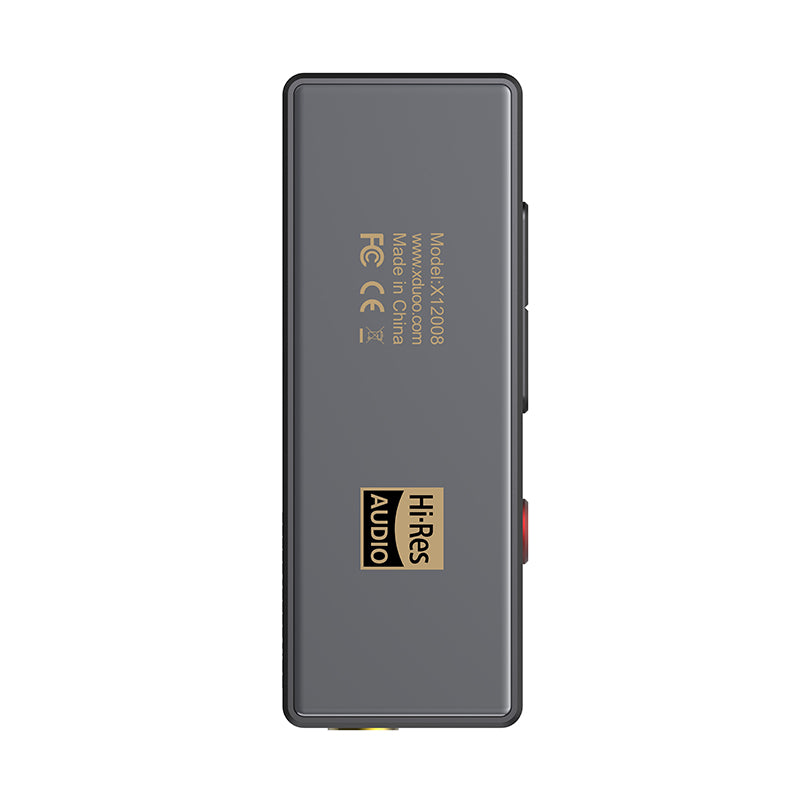

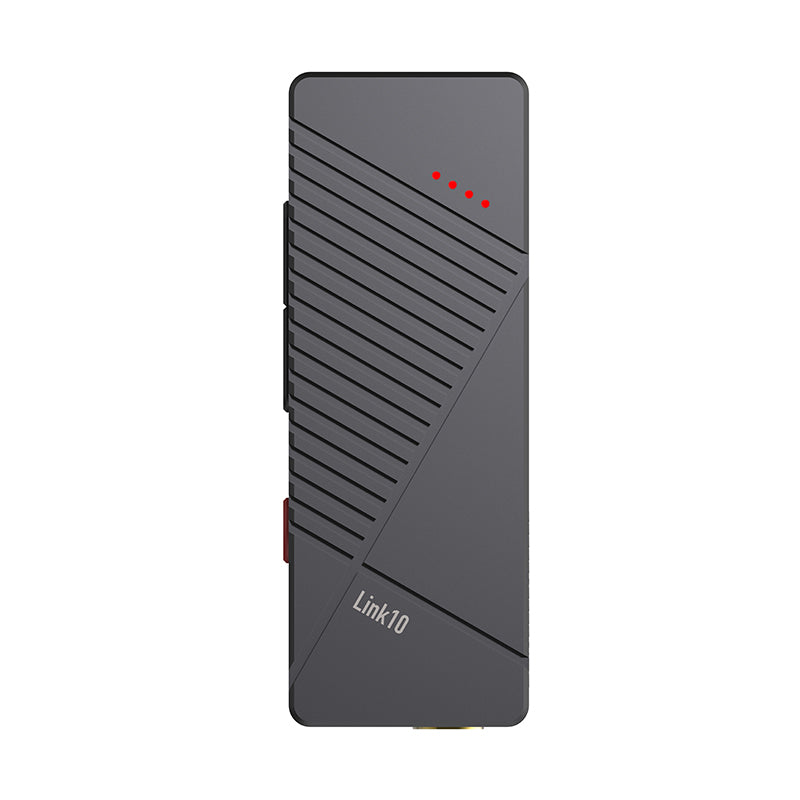

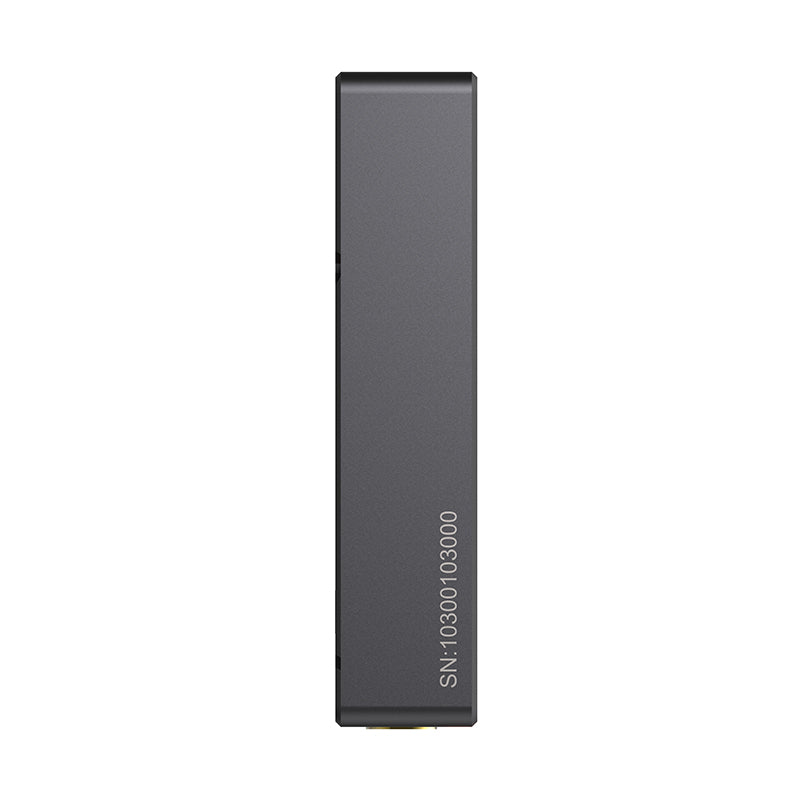

Compact USB DAC & Amplifier

The xDuoo Link10 is a pocket-sized USB DAC and headphone amplifier that works seamlessly with smartphones, tablets and computers to boost sound quality well beyond standard audio outputs.

Universal Device Compatibility

With UAC2.0 support on PCs and mobile devices, Link10 decodes up to PCM 32-bit/384 kHz and DSD256 master-level files. In UAC1.0 mode it also plugs into gaming consoles like Switch and PlayStation to enrich in-game sound effects.

High-Resolution Audio Decoding

Built to handle lossless, studio-grade music, the dual CS43131 DAC chips deliver a signal-to-noise ratio of nearly 130 dB and total harmonic distortion as low as –115 dB, ensuring every musical detail is faithfully restored.

Powerful Headphone Drive

At 32 Ω load, Link10 outputs up to 300 mW, easily powering low-impedance headphones. Even when driving 150 Ω models, it still delivers 270 mW—enough headroom for demanding high-impedance cans.

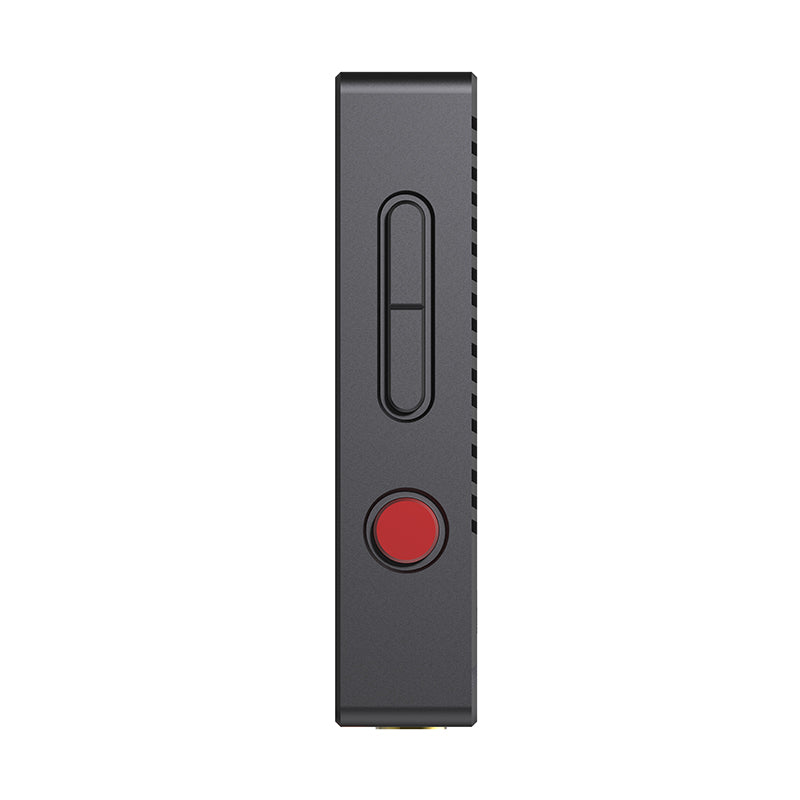

Precise Digital Volume Control

A 60-step digital volume wheel offers fine, stepless adjustments. No matter your headphones’ impedance or sensitivity, you can dial in the perfect listening level without compromise.

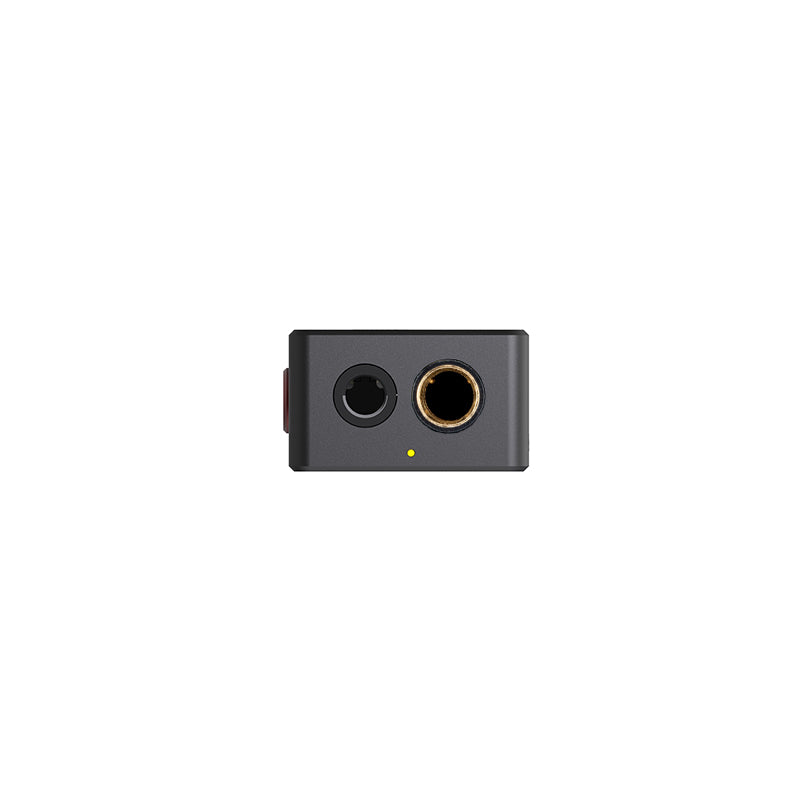

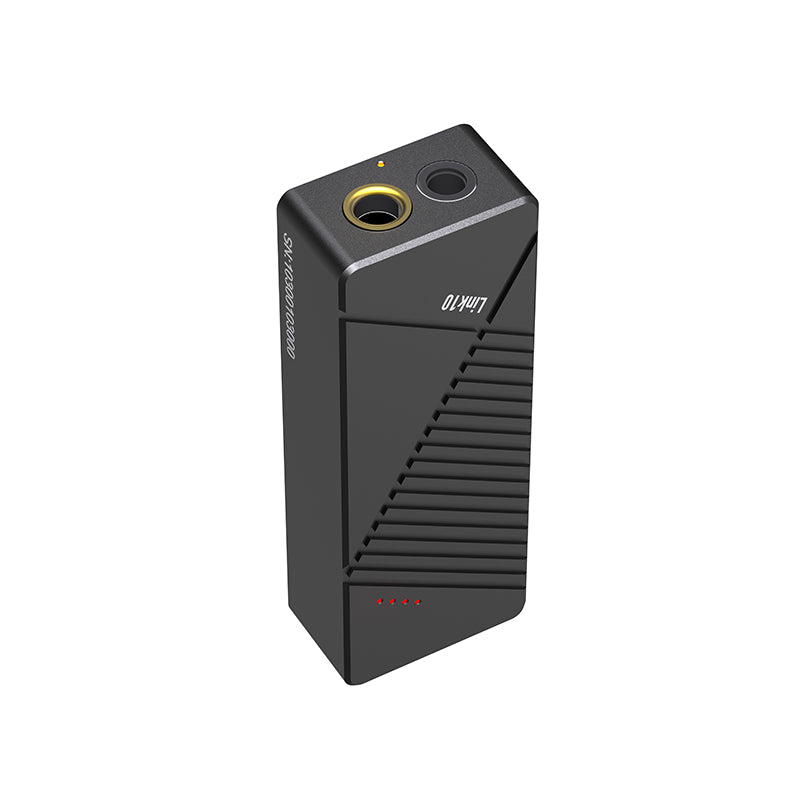

Flexible Output Options

Both a 3.5 mm unbalanced jack and a 4.4 mm balanced output are on board. Switch freely between everyday headphones and premium balanced pairs for maximum compatibility.

Dual USB Modes for Music & Gaming

• Music Mode (UAC2.0): Unlock high-definition formats and pinpoint instrument detail.
• Game Mode (UAC1.0): Enjoy console-compatible sound that heightens immersion and spatial effects.

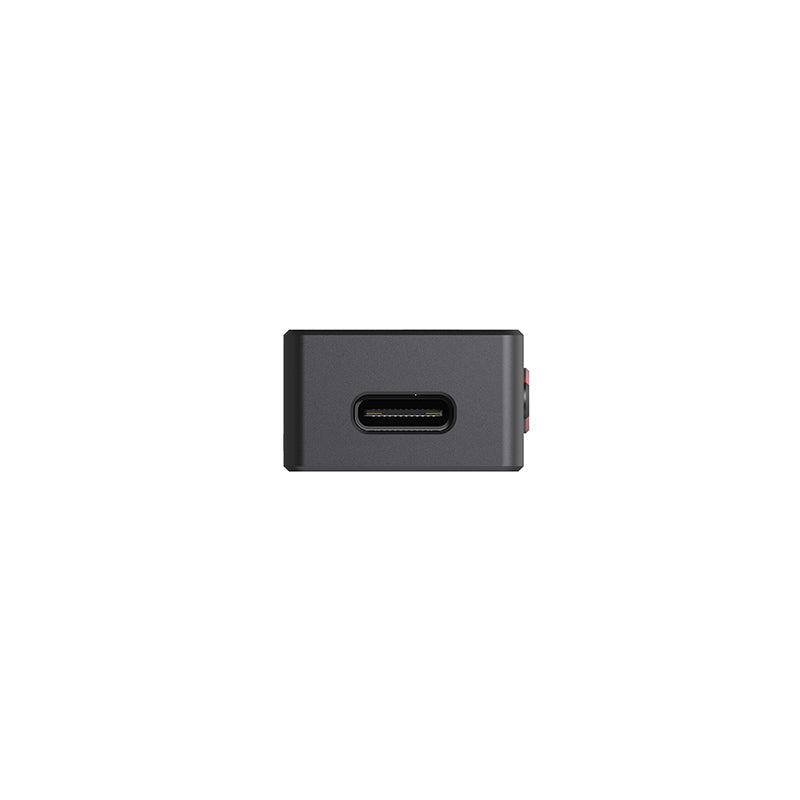

Detachable USB Cable

The removable USB-C to USB-A cable lets you adapt to older and newer ports alike, extending compatibility across generations of devices.

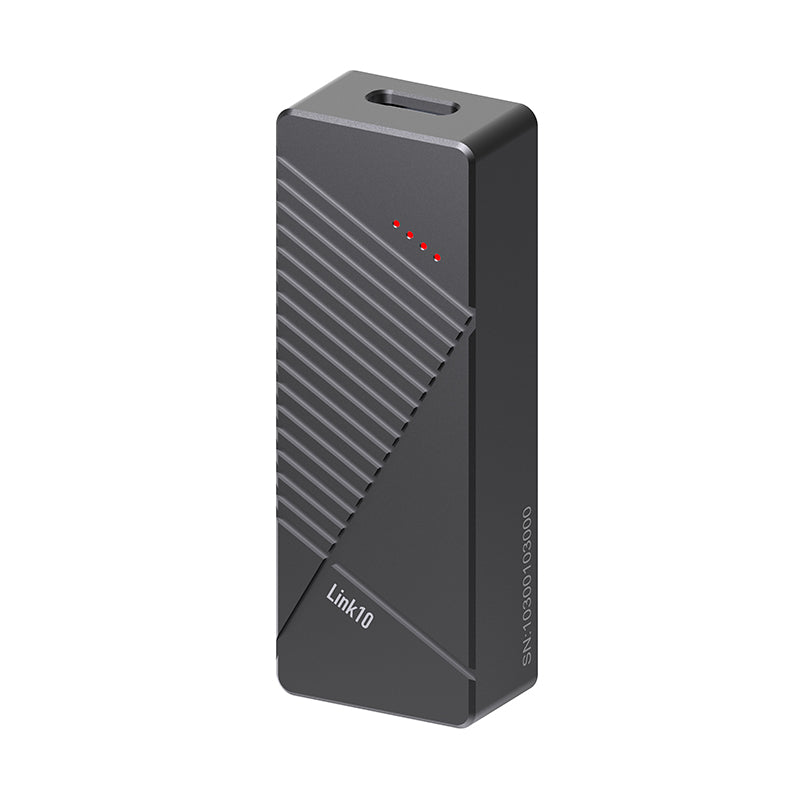

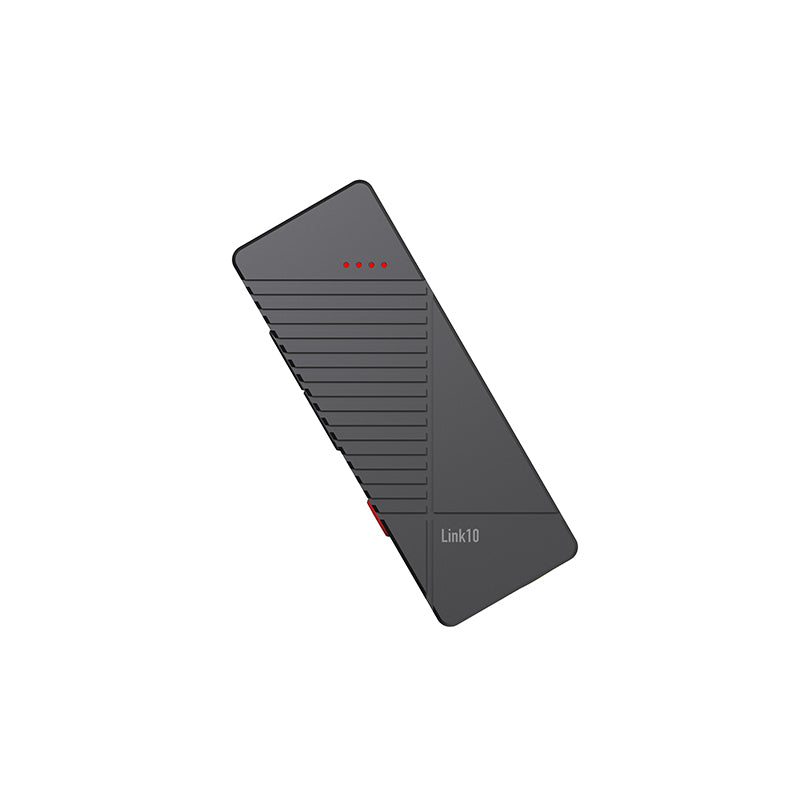

Durable, Ultra-Portable Design

Crafted from CNC-machined aluminum alloy, Link10 weighs just 25 g and measures no larger than a flash drive. Slip it into your bag or pocket and bring high-quality audio everywhere you go.

Battery-Free Convenience

Thanks to its ultra-low power draw, Link10 runs entirely off your host device’s USB port—no charging, no extra batteries, and minimal impact on your phone’s battery life.

Technical Details

Unbalanced Output
Output Power
250mW@32Ω
140mW@75Ω
70mW@150Ω
45mW@300Ω
THD+N
106dB@1kHZ
SNR
≥126dB
Ccrosstalk
≥75dB
Balanced Output
Output Power
300mW@32Ω
350mW@75Ω
270mW@150Ω
170mw@300Ω
THD+N
108dB@1kHz
SNR
≥130dB
Ccrosstalk
≥112dB
Frequency Response
20Hz~20kHz(+0.5dB)
Size
6.0 × 2.3 × 1.3 cm
weight
25g
Inside the Box
  • 1 x xDuoo Link10
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The xDuoo Link10 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
